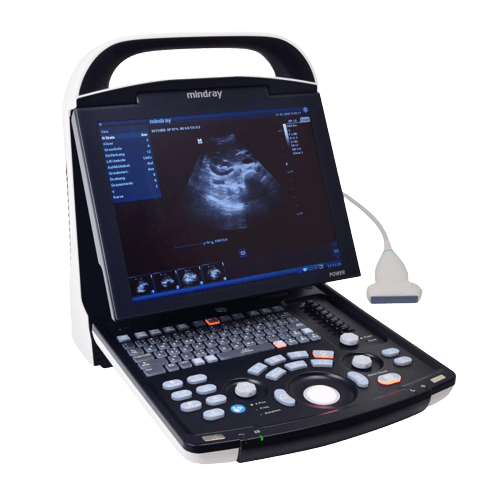

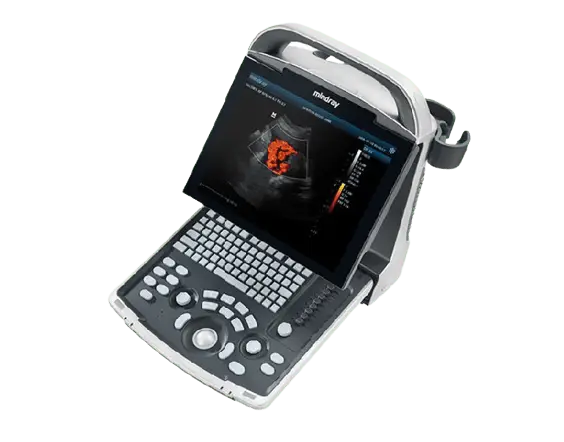

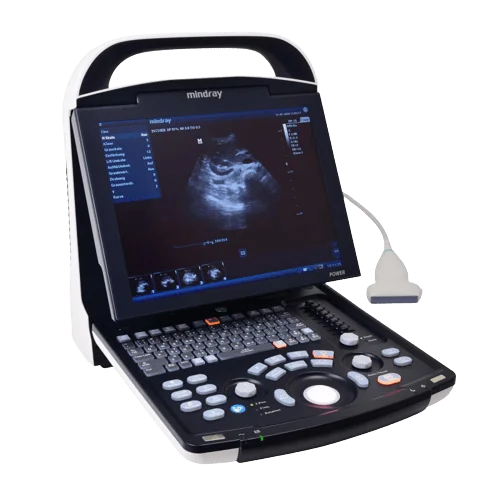

Mindray DP-30 Ultrasound System is the perfect combination of image quality, easeof-use, and extreme mobility

System Architecture

Compact, lightweight design for enhanced mobility, Durable, comfortable transducers for multi-modality imaging, Quick save and one-button image transfer to local, Rapid boot-up time

User Interface – Operator Keyboard

User-defined keys for personalized operation, Measurement and calculation software packages, Backlit control panel, Li-ion battery – 1.5 hours scanning time


Height: 354 mm (13.94 inch), Width: 290 mm (11.42 inch), Weight: 5.3kg (dual-probe Sockets)


Display screen

12.1-inch LED, High-Resolution 1024 ✕ 768, Contrast & Brightness adjustable, Screen Saver: Time presettable, Angle adjustable: 30°

Storage/ Connection

320G SSD standard storage space. External DVD-R/W (Optional), 2 USB Ports, Image archive on hard disk, DVD, iStorage and temporary saving in cine memory


Intelligent patient data management system, Integrated search engine for patient data, Detailed patient information view, Intelligent data backup/ restore

Imaging Solutions

The DP-30 is an ergonomically designed portable and ease-of-use machine for multi-specialty use like adults, pregnant women, pediatric patients and neonates.

Clinical Image 1

Clinical Image 2

Clinical Image 3

About Mindray DP-30

The DP-30Power Ultrasound System is the perfect combination of image quality, easeof-use, and extreme mobility. With a focus on user experience and flexibility, the DP-30 System enables seamless scanning from room to room and patient to patient. Compact, lightweight design for enhanced mobility Durable, comfortable transducers for multi modality imaging.  Tissue Specific Imaging (TSI): Optimizing image quality based on tissue properties, One-button image optimization, 8 segment TGCs assuring accurate image adjustment, Versatile applications with multiple transducers.

Compatible Probes

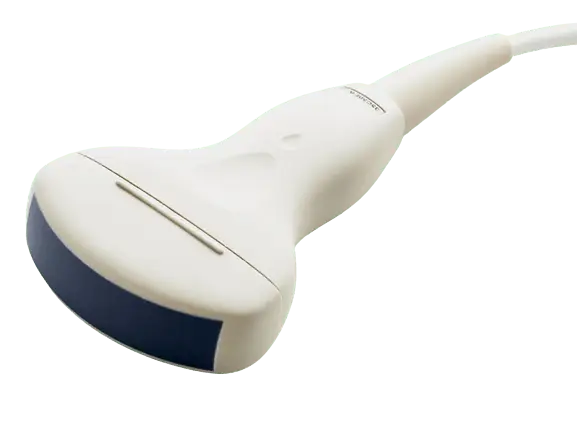

Mindray 35C50EA

Bandwidth: 2.0, 3.5, 5.0, 6.0 MHz

Applications: OB-GYN, Pediatrics

Compatibility: Mindray DP-30

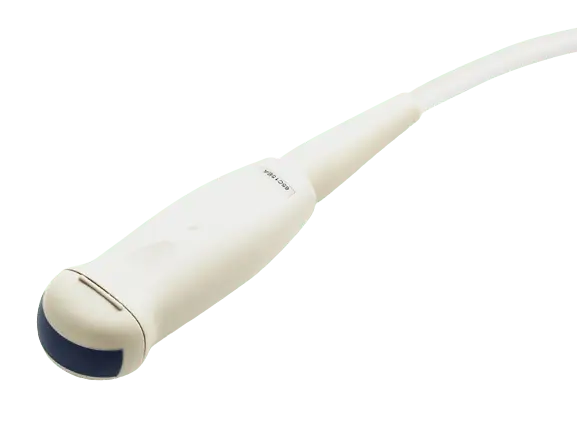

Mindray 65C15EA

Bandwidth: 5.0 – 8.5 MHz

Footprint: 15 mm

Applications: Abdominal, Pediatrics

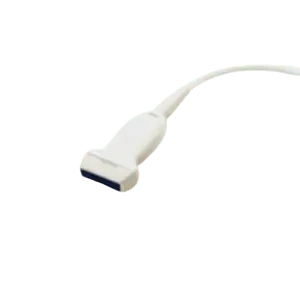

Mindray 75L38EA

Bandwidth: 5.0 – 7.5 MHz

Applications: Thyroid, Breast

Compatibility: Mindray DP-30

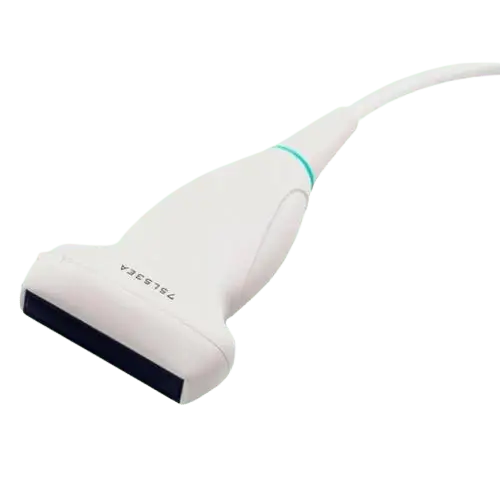

Mindray 75L53EA

Bandwidth: 5.0 – 10.0 MHz

Applications: Vascular, Musculoskeletal

Compatibility: Mindray DP-30

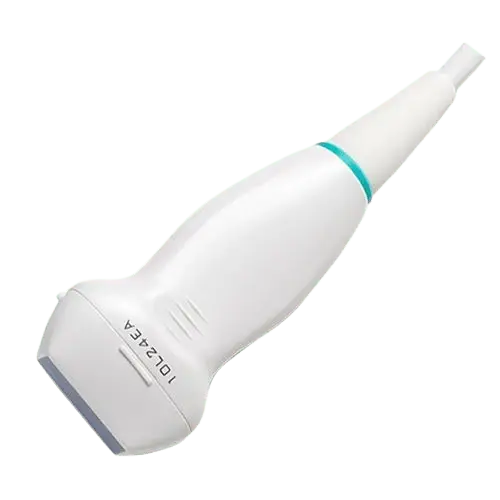

Mindray 10L24EA

Bandwidth: 8.0 – 12.0 MHz

Applications: Vascular, Breast

Compatibility: Mindray DP-30

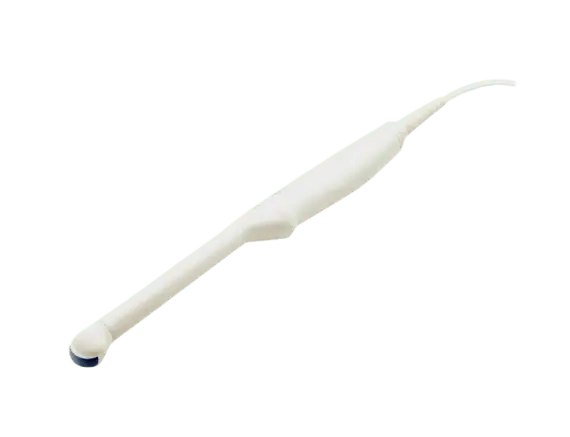

Mindray 65EC10EA

Bandwidth: 5.0 – 8.0 MHz

Compatibility: Mindray DP-30

Field of View: 60

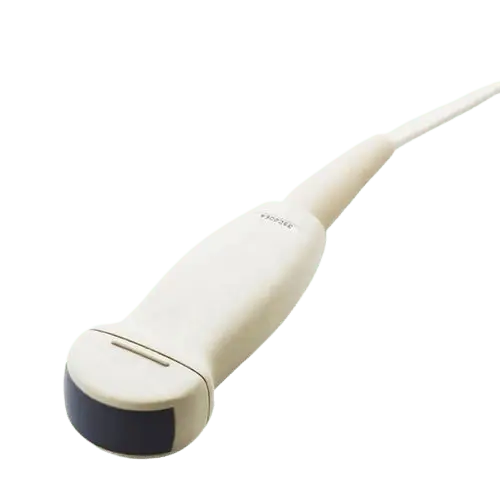

Mindray 35C20EA

Bandwidth: 2.0 – 5.0 MHz

Weight: 24,8 cm

Area: body surface

Mindray 65EC10ED

Bandwidth: 6.5 – 8.5 MHz

Applications: Veterinary

Compatibility: Mindray DP-30

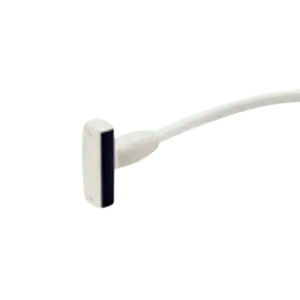

Mindray 75LT38EA

Bandwidth: 5.0, 7.5, 8.5, 10 Mhz

Footprint: 60.7 x 16 mm

Application: Intraoperative

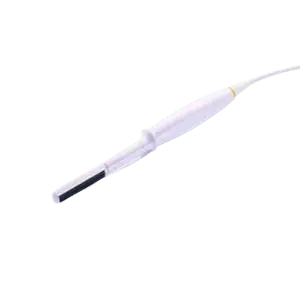

Mindray 65EL60EA

Bandwidth: 5.0, 6.5, 7.5, 8.5 MHz

Applications: Urology & Veterinary

Compatibility: Mindray DP 50
