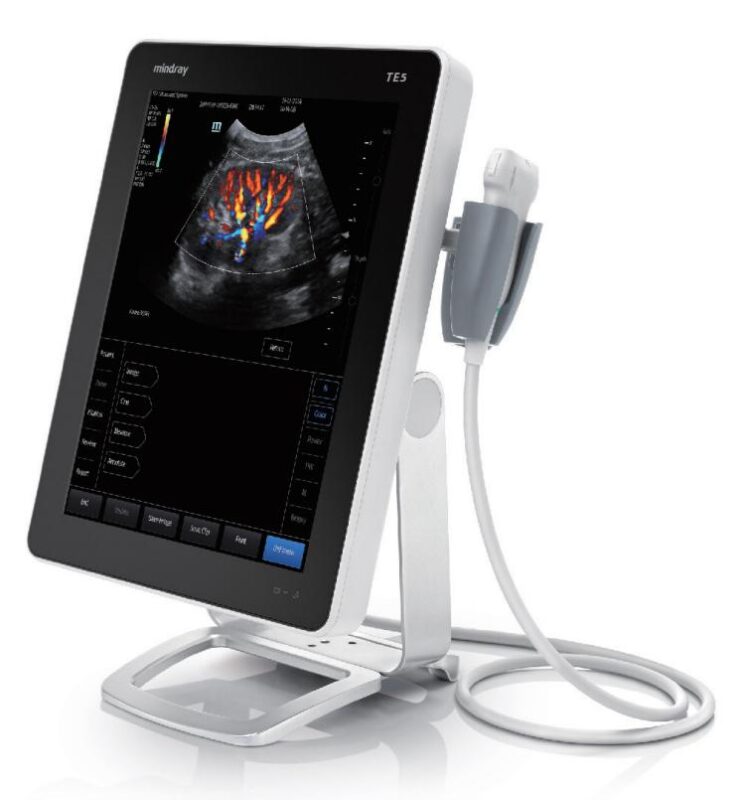

Mindray TE5 – Pre-owned

The Mindray TE5 is a specialty ultrasound system with a completely new design, where every detail of practical use has been taken into consideration and ultimately realized for anesthetists and physicians. eSpacial Navi and iNeedle ensure safe needling solution. Up to 20MHz ultra-high frequency linear transducer can visualize the finest nerves and fibers with extremely high resolution. Seamless monitor with full touch screen and exclusive clean-lock function ensure efficient cleaning and disinfection. The multiple modality design enables the TE5 to easily handle a wide range of medical scenarios.

Key Features

State-of-the-art fingertip operation: tap to open or close functions, drag to adjust parameters and move objects, pinch to zoom in or out, slide for multi-selection, and swipe to expand the imaging area, even with your gloves on – providing simple control and setting optimization at the touch of a finger. Most frequently used ultrasound functions are constantly displayed on the top half of the screen. Advanced functions and features can be easily defined by you, and just a ‘touch away’.

Width: 361 mm
Height: 75 mm
Weight: approx. 5.05 kg
15-inch high res LCD monitor
320GB hard disk
Multi-beam Parallel Imaging
Supports DICOM, AVI, BMP, and JPG
S-video output and two USB ports
Smart 3D – free hand 3D imaging

Applications

  • Abdomen
  • Obstetrics
  • Gynecology
  • Cardiology
  • Small parts
  • Urology
  • Vascular
  • Pediatrics
  • Nerve

Imaging Solutions

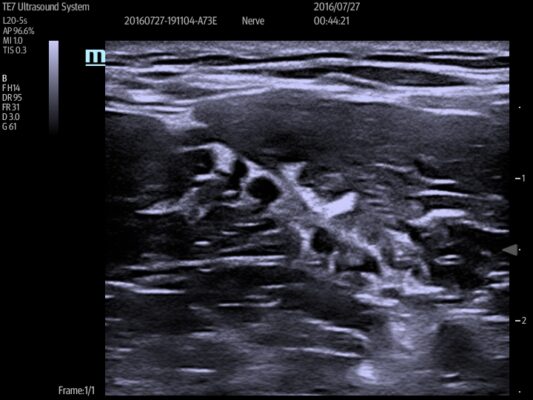

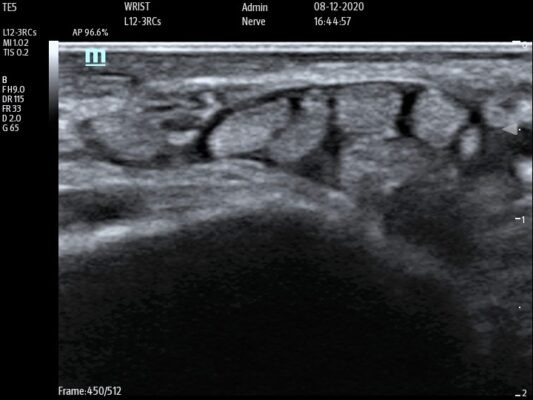

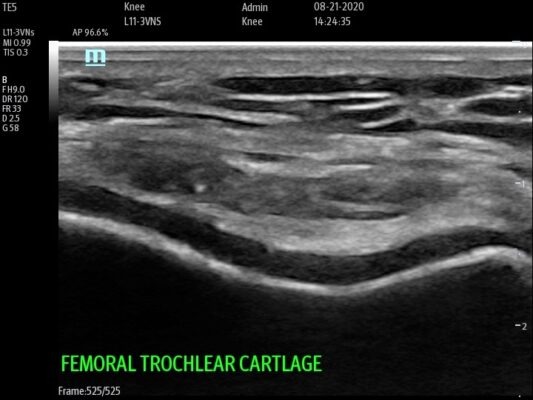

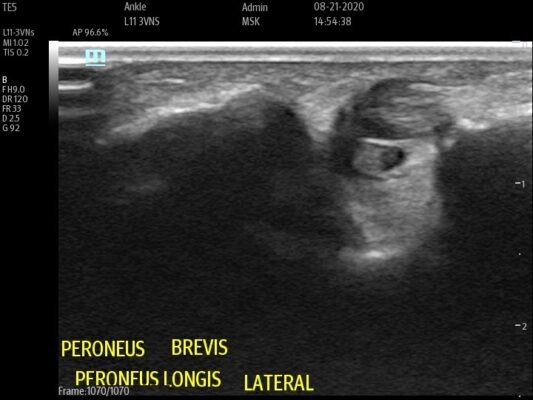

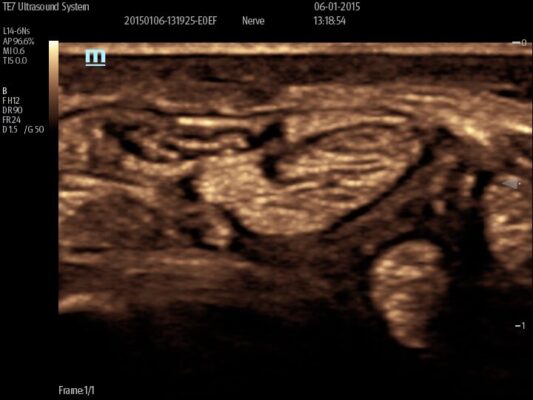

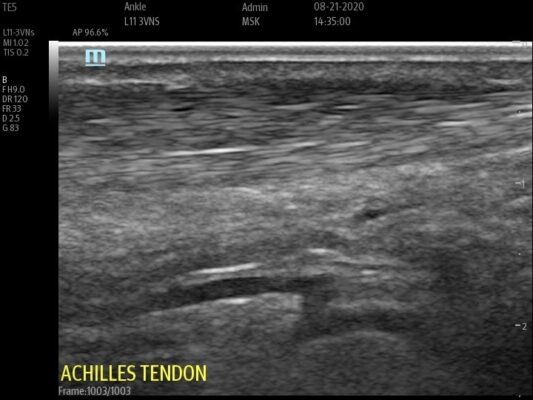

With the high performance linear transducer, the superior resolution of the TE5 is execellent for detect nerve, muscle and tendon.

Compatible Probes

Mindray C5-1s

Bandwidth: 5 – 1 MHz frequency

Applications: Abdominal, OB/GYN

Needle Guide: Innofine JSM-022

Mindray C5-2s

Bandwidth: 2 – 5 MHz

Footprint: 50mm

Field of View: 76°

Mindray C11-3s

Bandwidth: 3 – 11 MHz.

Applications: Abdominal, Pediatrics

Compatibility: Mindray TE5

Mindray L11-3VNs

Bandwidth: 3-11 MHz

Field of View: 38 mm

eSpacialNavi ™enabled

Mindray L12-3RCs

Bandwidth: 3.0 MHz – 12.8 MHz

Applications: Small Parts, Vascular

Compatibility: Mindray TE5

Mindray L12-4s

Bandwidth: 3.0 – 13.0 MHz

Applications: Small Parts, Vascular

Needle Guide: Multi Angle

Mindray L14-6Ns

Bandwidth: 6.0 – 14.0 MHz

Applications: Small Parts, Vascular

Needle Guide: Innofine JSM-007

Mindray L7-3s

Bandwidth: 3 – 7 MHz

Footprint: 43 x 10 mm

Field of View: 38 mm

Mindray L20-5s

Bandwidth: 5.0 MHz. – 20.0 MHz

Applications: Musculoskeletal

Field of View: 29 mm

Mindray L16-4Hs

Bandwidth: 3.5 – 16.0 MHz

Applications: Musculoskeletal, Superficial

Compatibility: Mindray TE5

Mindray L14-6Ns

Bandwidth: 6.0 – 14.0 MHz

Applications: Small Parts, Vascular

Needle Guide: Innofine JSM-007

Mindray 7LT4s

Bandwidth: 4 – 15 MHz

Field of View: 43 mm

Biopsy kit: NGB-010, multi-angle

Downloads

Mindray TE5 Datasheet
