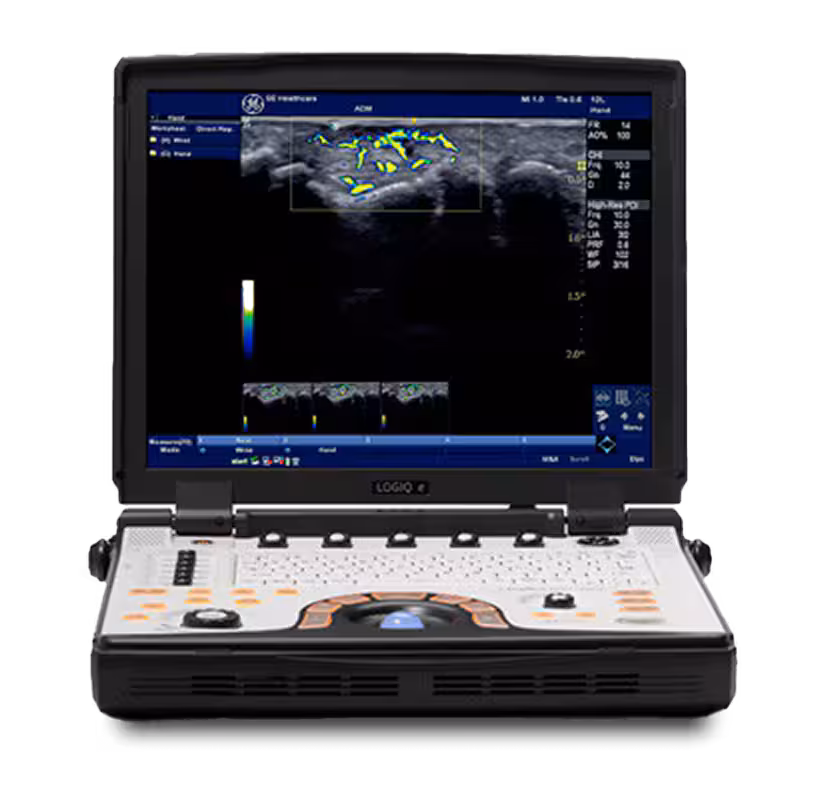

GE Logiq e NextGen portable high performance digital laptop ultrasound system

Display Screen

15 in High-Resolution Color LCD. Resolution: 1024 x 768. Horizontal/Vertical viewing angle: +/-80 degree. Brightness Adjustment

Console Design

Laptop Style, Lithium Ion Battery, Integrated Solid State Drive, CPU – Intel Duo Core, Operating System – Microsoft® Windows® 7

Dimension

Width: 295 mm (11.61 in) console only, Height: 70 mm (2.75 in) console only, Weight: approximately 5.2 Kg (11.5 lbs)

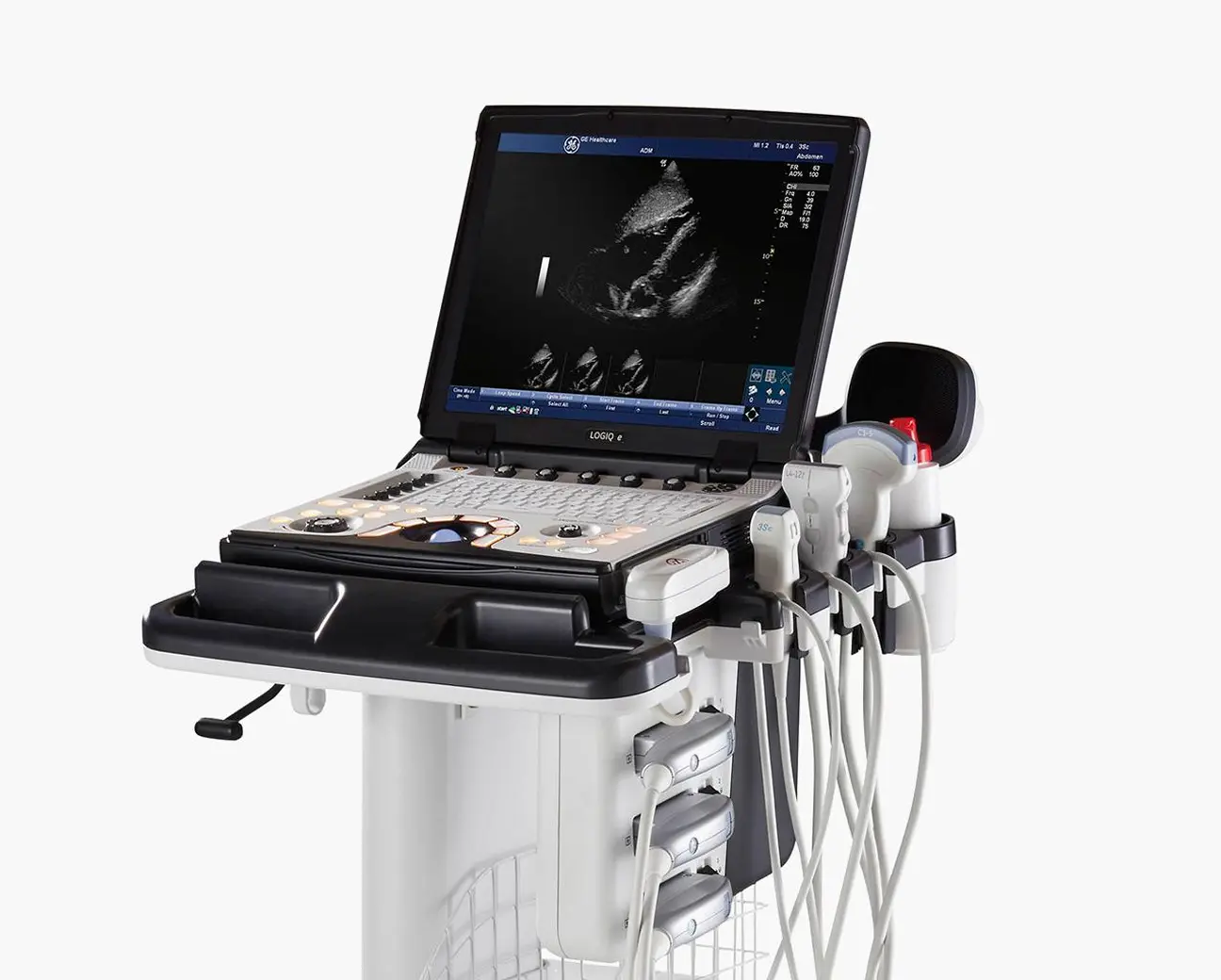

logiq-e-nextgen-with-cart-tuss

Operator Keyboard

GE Logiq e Nextgen have Alphanumeric Keyboard, Ergonomic Hard Keys, Backlight Keys, Interactive Dynamic Software Menu.

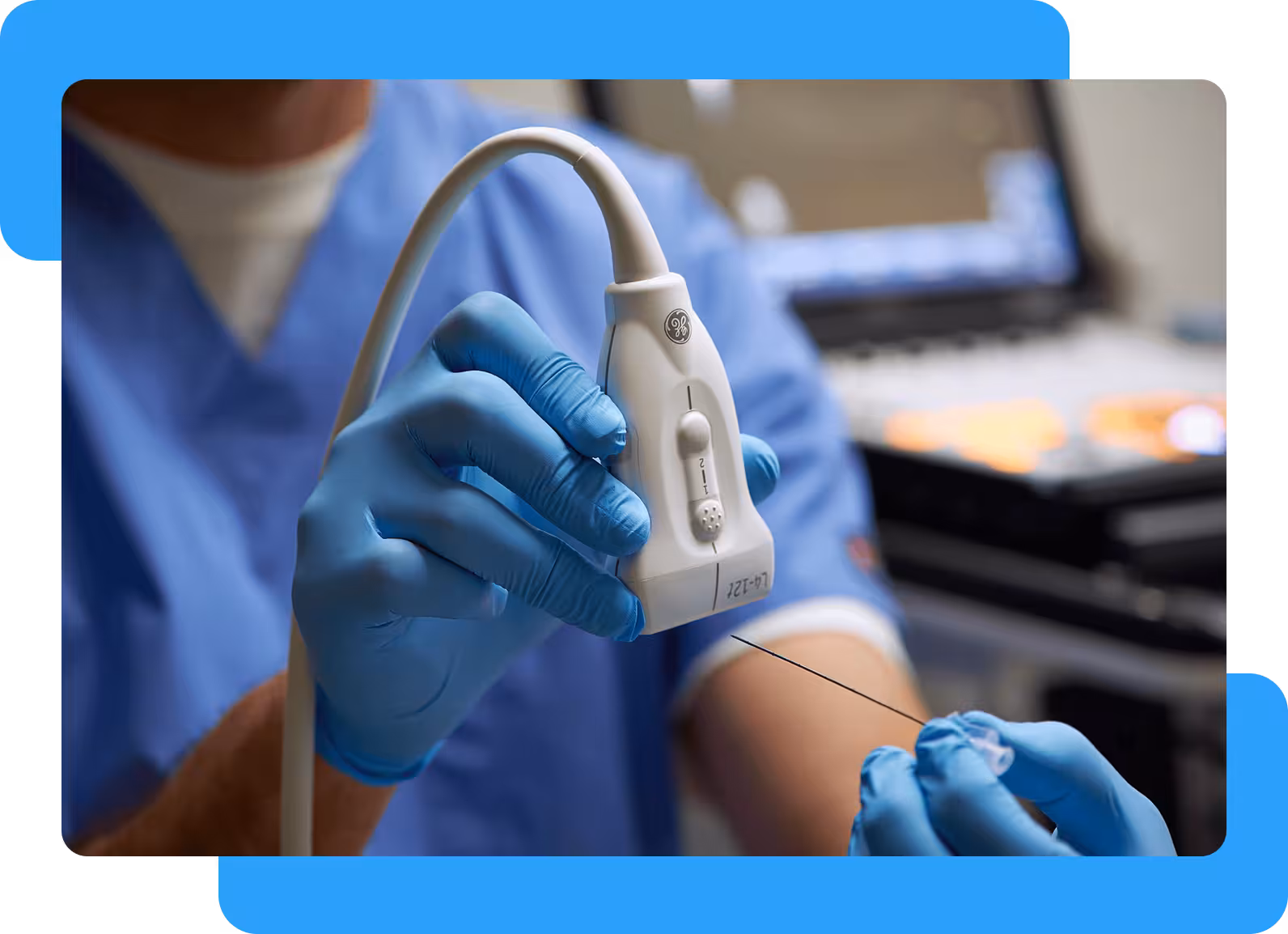

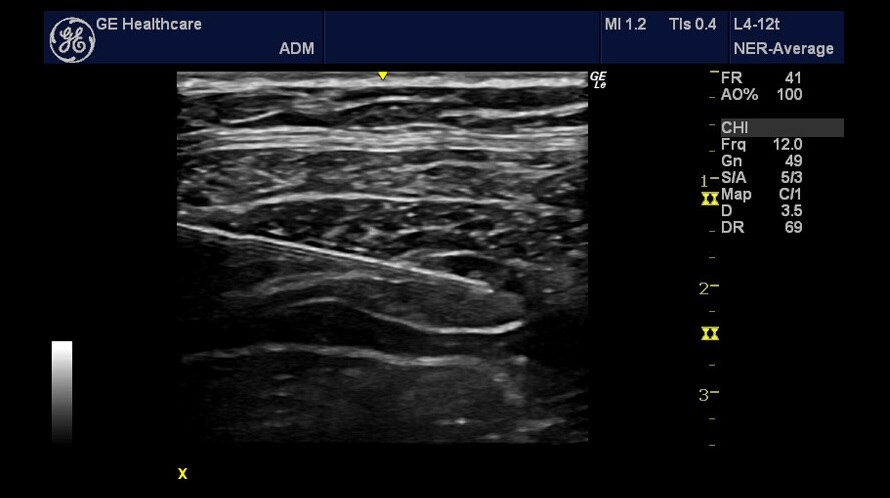

Needle Recognition Mode

Provides accurate display of the needle, anatomy and motion even in Color and Power Doppler.

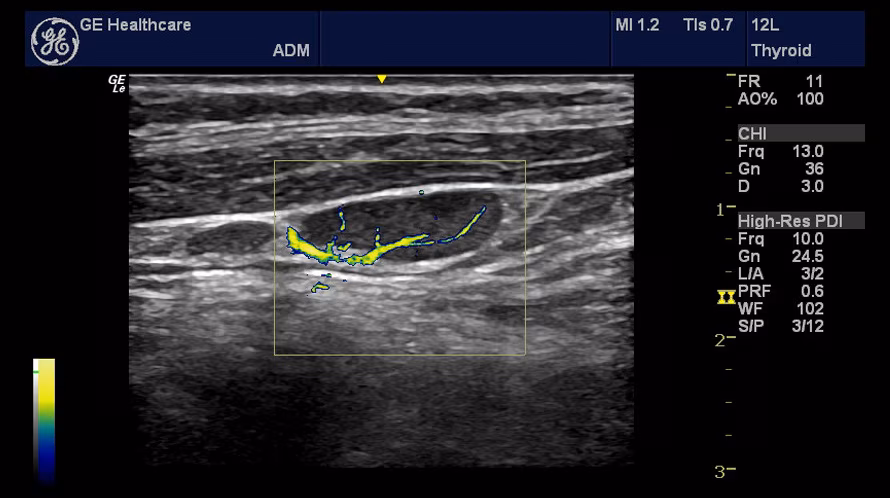

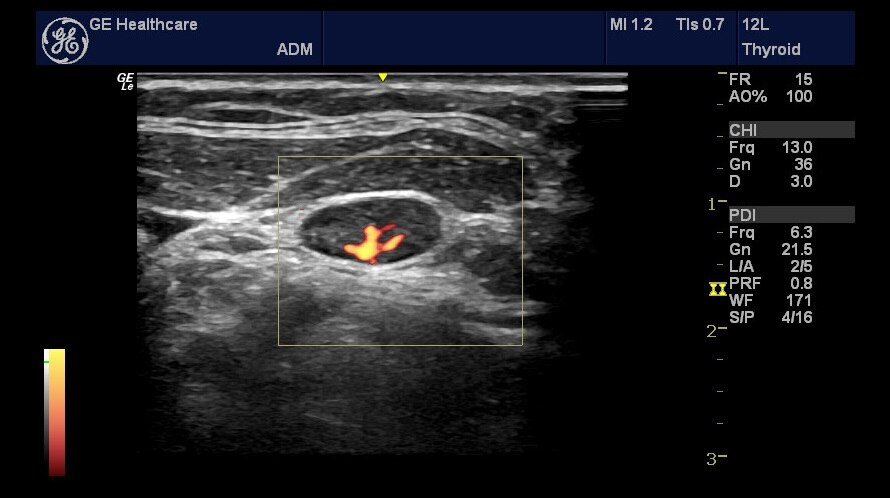

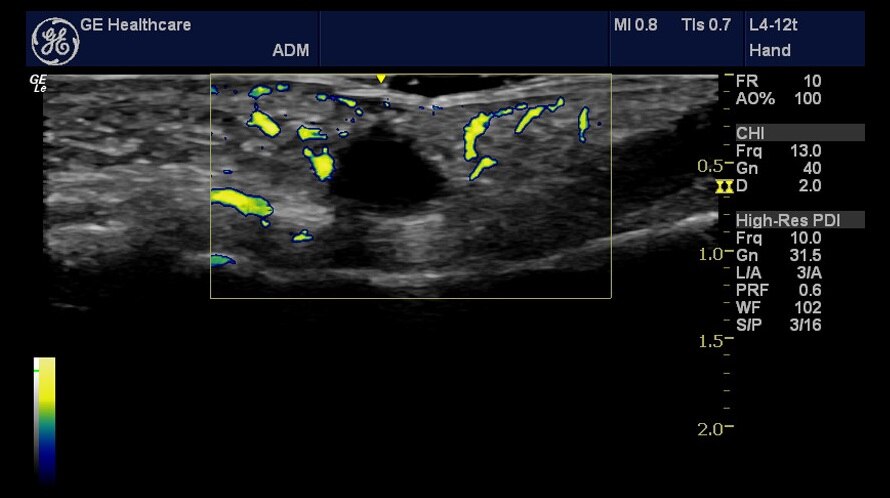

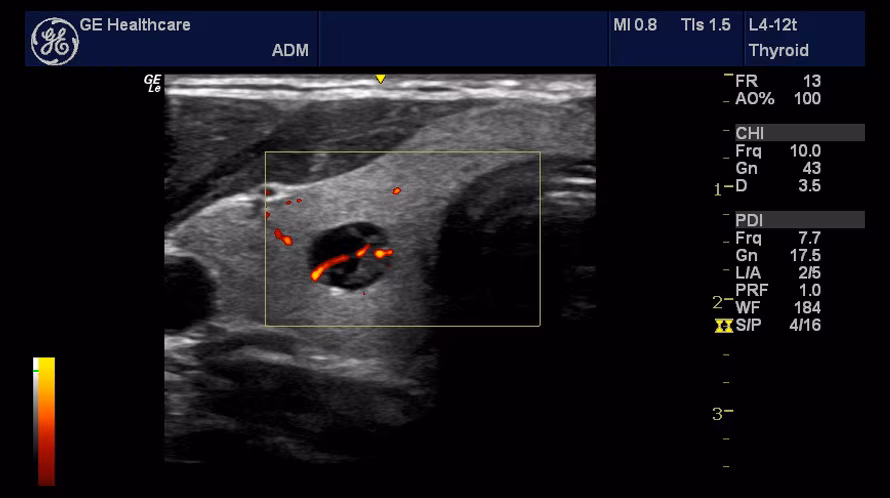

Color Flow Mode (CFM)

A real-time two-dimensional cross-section image of blood flow. Color gradient used to represent directional blood flow (velocity, variance, power and/or direction) prioritized over amplitude.

Imaging Solutions

GE Healthcare’s compact system is designed for general imaging, musculoskeletal, anesthesiology, interventional, emergency, and critical care applications

Anesthesiology

Anesthesiology-logiq-e-nextgen

Emergency Medicine

Emergency Medicine-logiq-e-nextgen

Rheumatology

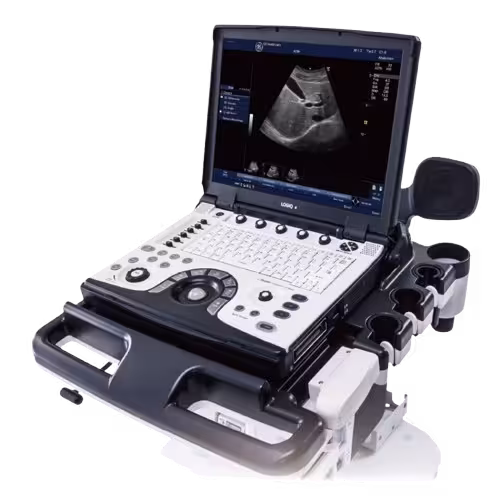

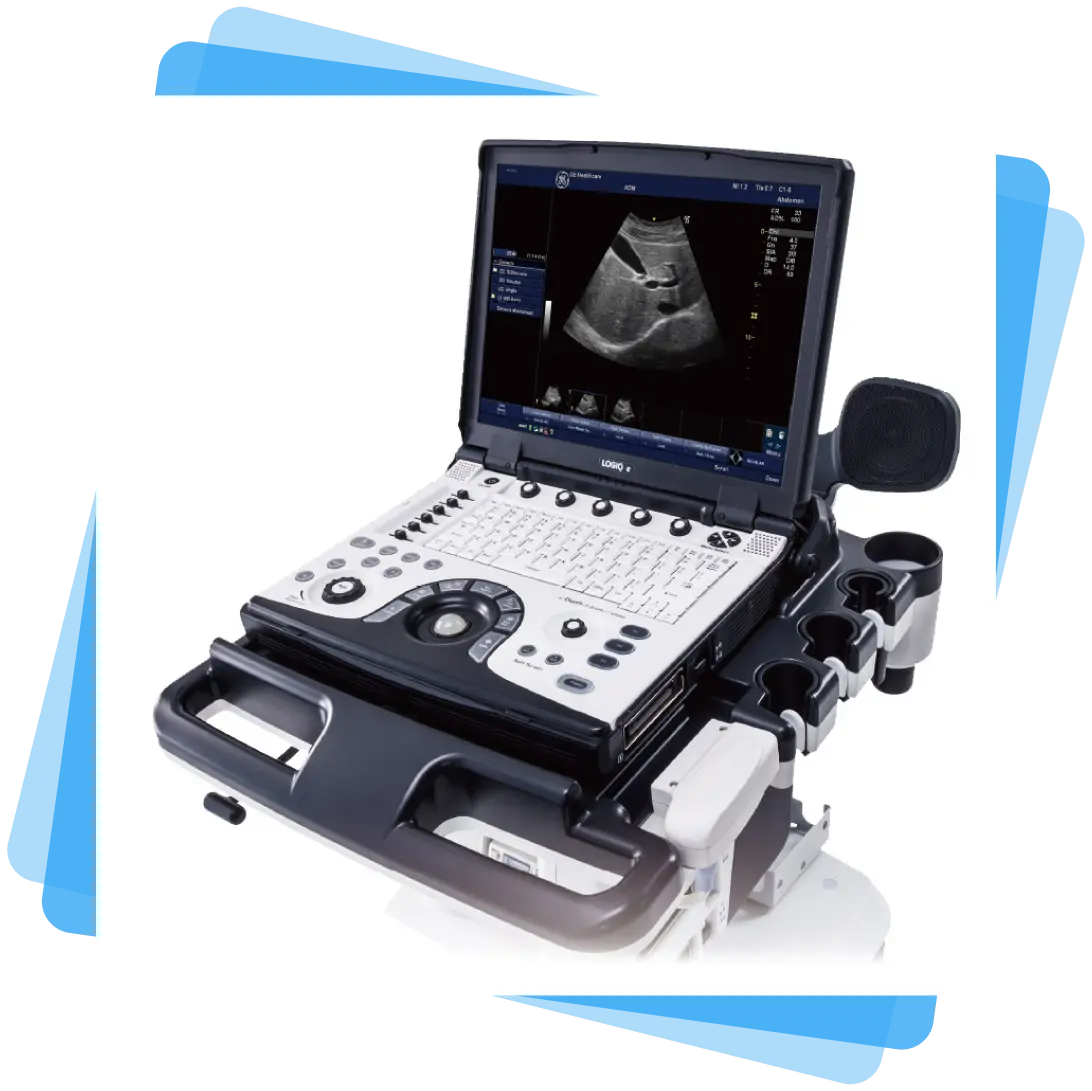

About GE Logiq e

The NextGen LOGIQ™ e combines the high performance of a console system with the portability of a laptop. GE Healthcare’s compact system is designed for general imaging, musculoskeletal, anesthesiology, interventional, emergency, and critical care applications. It provides ultrasound imaging with precise anatomical detail at a variety of depths. The system includes innovative features that help simplify interventional procedures. Logiq e NextGen portable high performance digital laptop ultrasound system. Logiq e NextGen portable machines has harnesses pattern recognition technology that recognizes and accurately reveals the structure of a needle within the anatomy Notable features.

ge_logiq_e_nextgen_left_angled_view_for_sale-tuss

Compatible Probes

GE C1-5-RS

Bandwidth: 1.5 – 5 MHz

Applications: OB-GYN, Urology

Transducer Type: Convex

GE 8C-RS

Bandwidth: 4 – 11 MHz

Footprint: 60.7 x 16 mm

Footprint: 26 x 10 mm

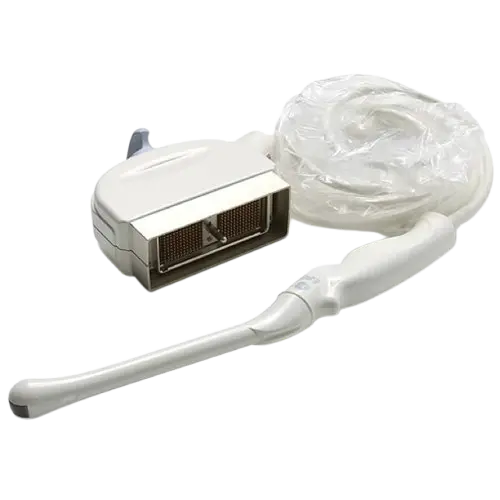

GE E8C-RS

Bandwidth: 4 – 11 MHz

Applications: Obstetrics, Gynecology

Field of View: 49.6 mm

GE 3Sc-RS

Bandwidth: 1.3 – 4.0 MHz

Footprint: 18 x 24 mm Footprint

Field of View: 90° Field of View

GE 6S-RS

Bandwidth: 1.3 – 4.0 MHz

Footprint: 18 x 24 mm Footprint

Field of View: 90° Field of View

GE 9L-RS

Bandwidth: 3.33 – 10 MHz

Footprint: 14.1 x 53 mm

Field of View: 49.6 mm

GE 12L-RS

Bandwidth: 5 – 13 MHz

Imaging Modes: 2D, Harmonics

Footprint: 48 x 7 mm

GE L4-12t-RS

Bandwidth: 4.2 – 13 MHz

Footprint: 12.7 x 47.1 mm

Compatibility: GE Logiq e NextGen

GE 4C-RS

Bandwidth: 2 – 5.5 MHz

Footprint: 18.3 x 66.2 mm

Field of view: 90 degree

GE 6Tc-RS

Bandwidth: 2.9-8.0 MHz

Footprint: L45 x W14 (x H12.5) mm

Depth of field: 20cm

GE L8-18i-RS

Bandwidth: 6.7–18.0 MHz

Footprint: 11.1 x 34.8 mm

Field of View: 49.6 mm
