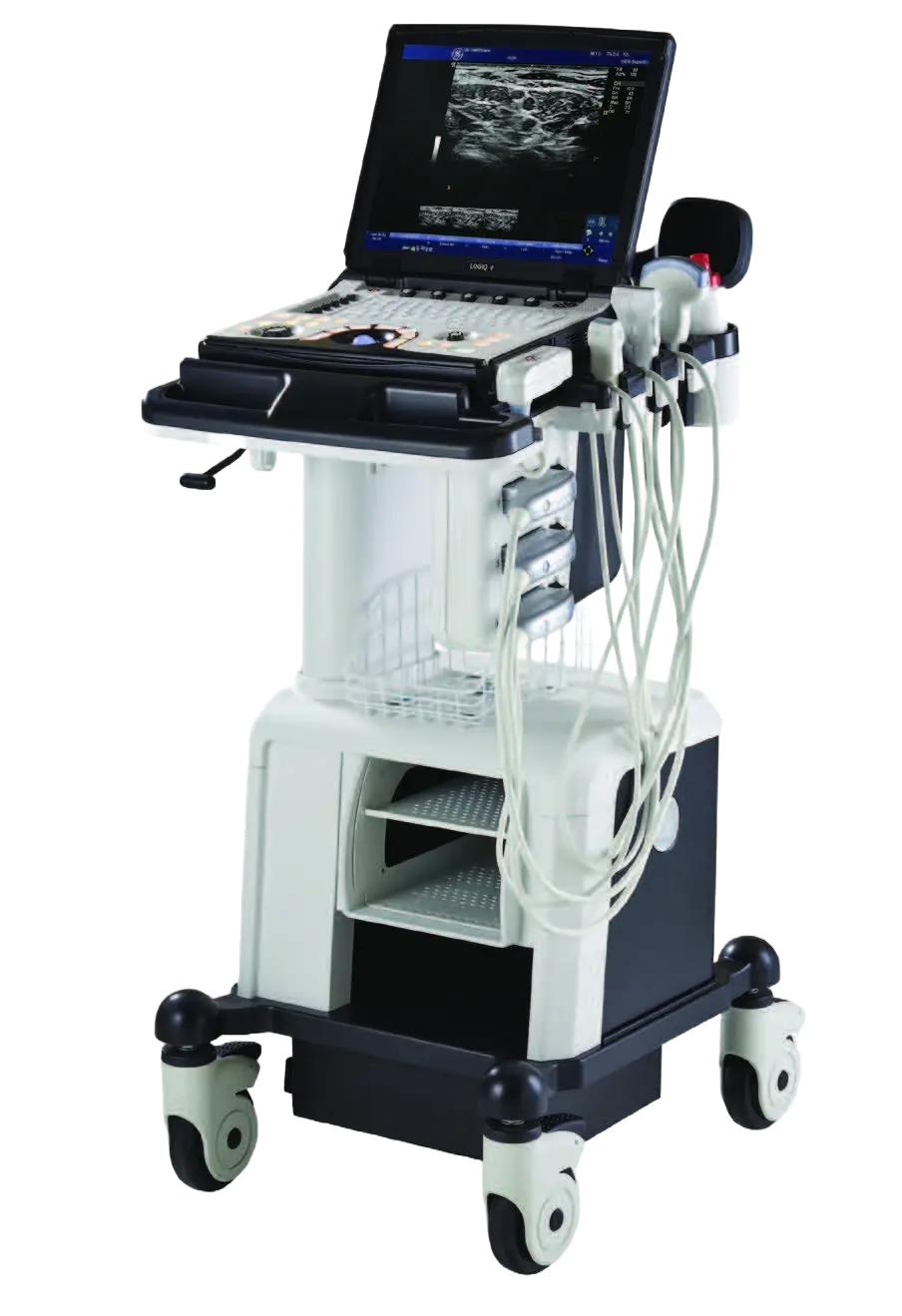

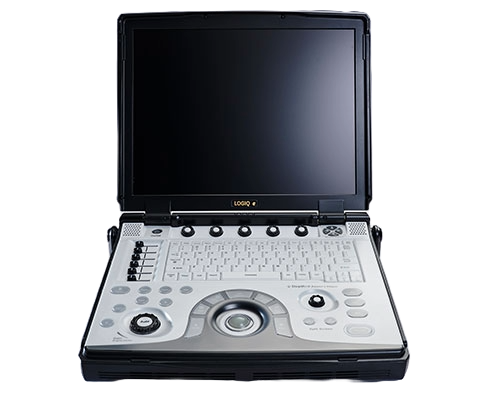

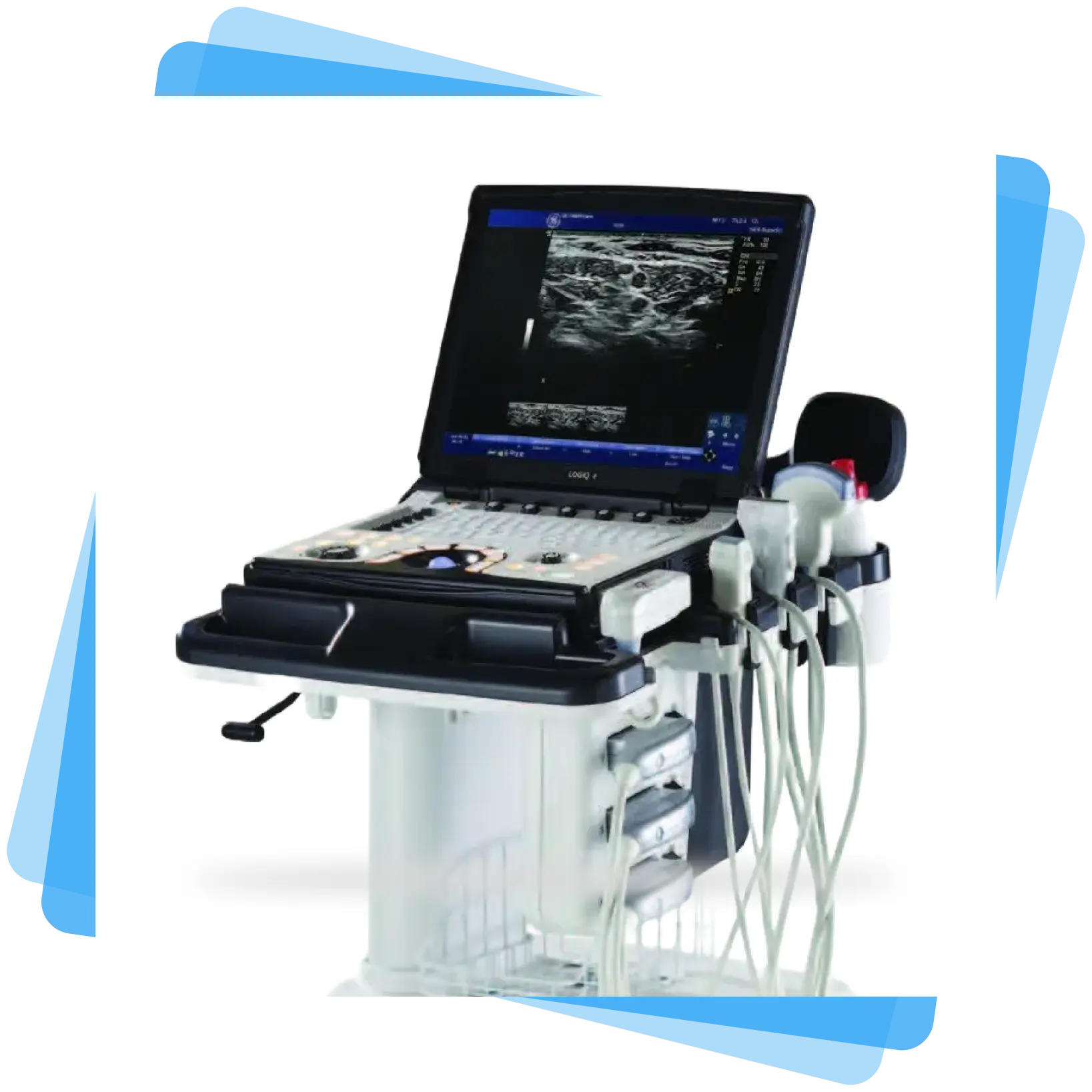

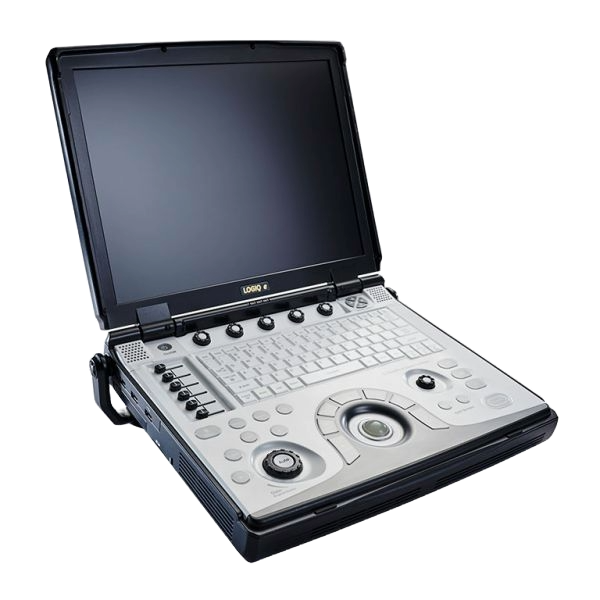

GE NextGen LOGIQ e R8 Ultrasound Machine

The GE NextGen LOGIQ™ e R8 portable ultrasound system combines the high performance of a console system with the portability of a laptop. GE Healthcare’s compact diagnostic imaging system is designed for general imaging, musculoskeletal (MSK), anesthesiology, interventional, OB/GYN, vascular, emergency, and critical care ultrasound applications. It provides high-resolution ultrasound imaging with precise anatomical detail at a variety of depths. The system includes innovative features such as CrossXBeam, Speckle Reduction Imaging (SRI-HD), Auto Tissue Optimization (ATO), and Needle Recognition mode that help simplify interventional procedures and deliver reliable results.

A fast and accurate regional block requires seeing the nerve quickly and then precise needle guidance with ultrasound. That’s what anesthesiologists told GE Healthcare scientists. Even more, they asked for help to see the needle tip clearly on the GE NextGen LOGIQ e R8 portable ultrasound system, perform procedures efficiently, and be confident that the injection was administered in the correct location — even in obese patients. With advanced features like Needle Recognition mode, CrossXBeam, and SRI-HD imaging, the GE LOGIQ e R8 ultrasound machine delivers reliable performance for anesthesia and regional block procedures.

About GE NextGen LOGIQ E R8

See clearly. See quickly. Guide precisely. Those were the values that users requested that drove the creation of the GE NextGen LOGIQ e R8 portable ultrasound system. With enhanced cybersecurity measures from the Windows® 10 operating platform, its powerful imaging engine comes from GE’s flagship ultrasound console system, delivering crisp, high-resolution images in a compact package. Innovative anesthesia-specific ultrasound software and compatible transducers help you see the needle, improve guidance, and administer a block — even in a brightly lit room. The LOGIQ e R8 ultrasound machine offers advanced features like CrossXBeam, SRI-HD, and Needle Recognition mode, plus right-out-of-the-box imaging optimized for anesthesia, making the technology transparent so you can focus on the patient.

Whether you’re measuring seconds for clinical reasons or measuring productivity for business reasons, the GE LOGIQ e R8 compact ultrasound is built to help make you fast. This portable diagnostic ultrasound system is designed for point-of-care efficiency, allowing you to move quickly from patient to patient with confidence and precision.

Imaging Solutions

Specifications

Width

295 mm (11.61 in) console only

Height

70 mm (2.75 in) console only

Length

346 mm (13.62 in) console only

Weight with Battery

Approximately 5.2 Kg (11.5 lbs)

Monitor

15 in High-Resolution Color LCD, Resolution: 1024 x 768

Power

Voltage: 100-240 V AC, Frequency: 50/60 Hz, Power: Max. 130 VA

Operator Keyboard

Alphanumeric Keyboard, Ergonomic Hard Keys, Backlight Keys

Power Consumption

310 VA

System Battery

Lithium Ion Battery

Console Interfaces

DC Power Input, USB 2.0 (3), HDMI

Connectors

LAN 10/100/1000 BaseT, Docking Cart Connector

Simple, Fast and Precise Ultrasound for Growing Practices: GE NextGen LOGIQ E R8

Challenges in Anesthesiology

Getting the needle in the right place the first time on all patient types is key to patient comfort. Crisp, high-resolution imaging is at the core of the LOGIQ e R8 ultrasound machine.

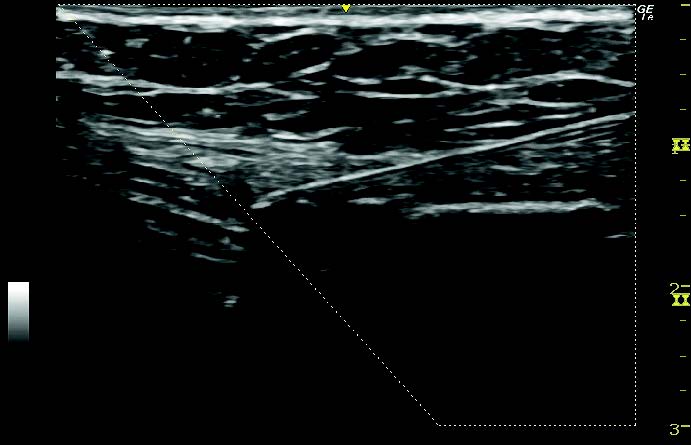

See the needle tip – The GE LOGIQ e R8 compact ultrasound uses two different types of ultrasound: one for tissue and one for metal. This advanced Needle Recognition mode makes the needle stand out and allows separate control of its appearance.

See the nerve – Tissue differentiation matters. The LOGIQ e R8 imaging engine is optimized with CrossXBeam and SRI-HD technology to help make the nerve stand out for confident anesthesia and regional block procedures.

CrossXBeam™: Enhances tissue and border differentiation by combining sonographic information from different angles.

Needle Recognition Mode: Provides accurate display of needle position for interventional procedures.

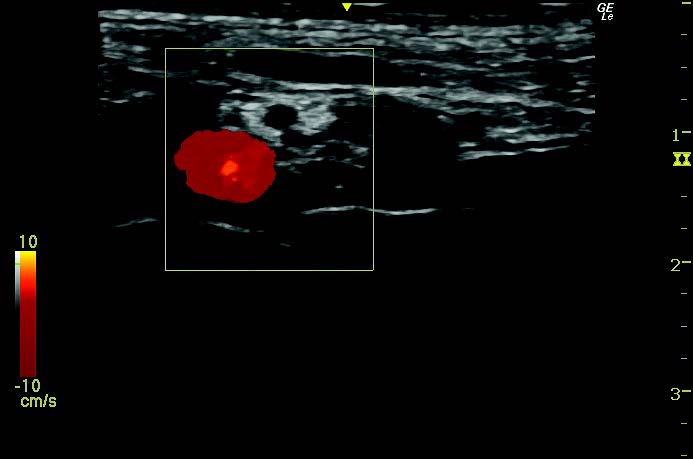

Advanced Imaging Modes: Includes 2D, Color Doppler, Power Doppler, PW Doppler, CW Doppler, M-Mode, Color M-Mode, and Anatomical M-Mode.

Advanced Easy3D: Any Transducer that’s been validated on the NextGen LOGIQ e System may be used to show anatomical relationships via the Easy3D function.

Versatility

Supports a wide range of applications, making it suitable for different clinical needs.

Portability

Lightweight and compact design allows for easy transport and use in various environments.

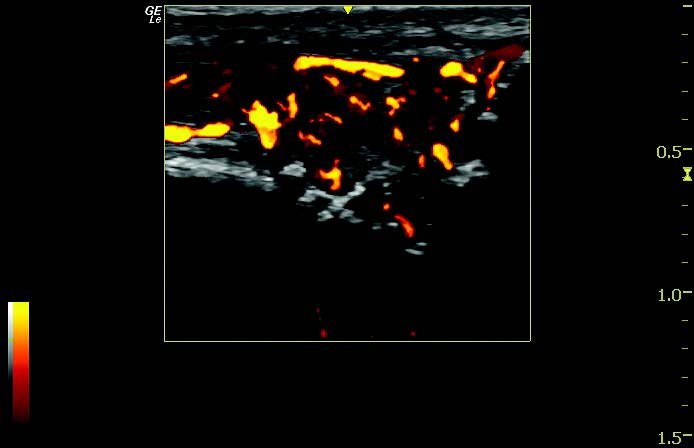

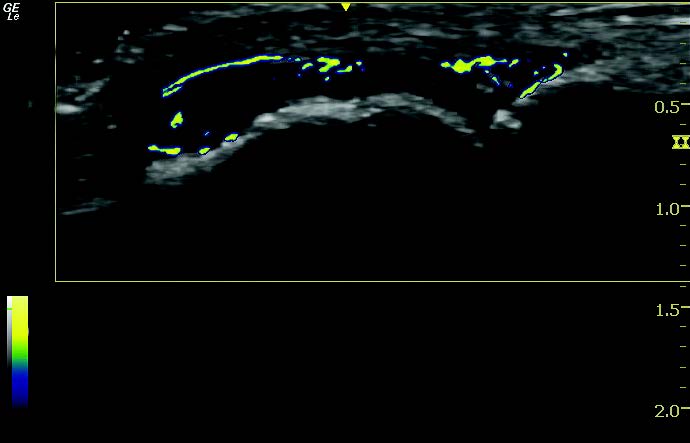

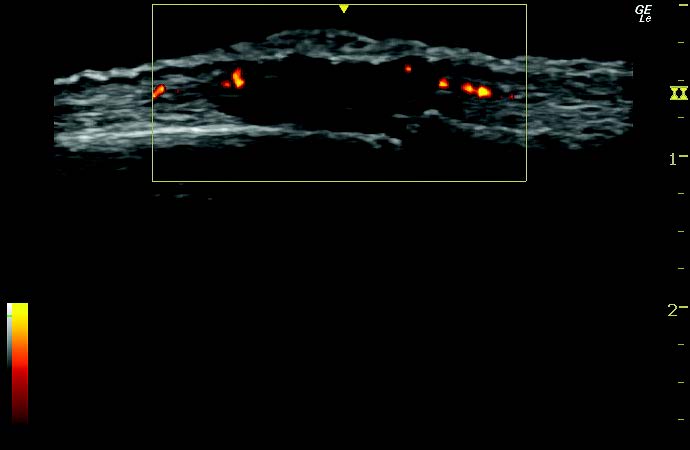

PDI Quantification

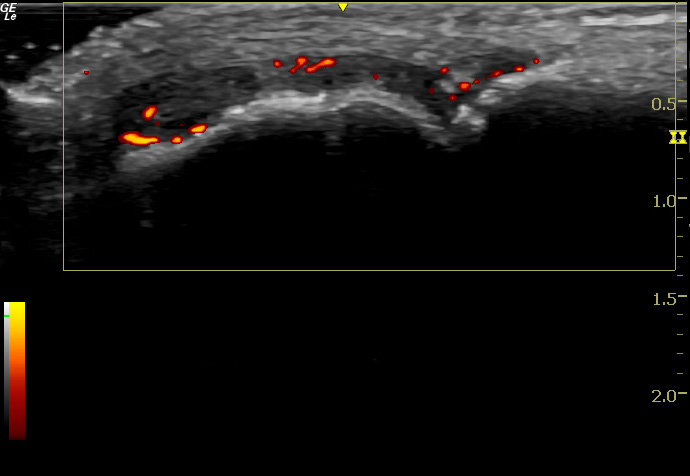

Provides blood flow results in numeric representation, that may be helpful in assessing inflammation, tumor, or synovitis.

Workflow Efficiency

Features like Auto Optimization and Needle Recognition streamline the imaging process and improve diagnostic confidence.

Enhanced Image Quality

The NextGen Logiq e offers higher image quality with advanced imaging modes such as Tissue Harmonics and Speckle Reduction Imaging (SRI).

DICOM 3.0 Connectivity

Ensures seamless integration with other medical systems.

Advanced technologies for effortless imaging

Whether you’re measuring seconds for clinical reasons or measuring productivity for business reasons, the GE LOGIQ e R8 portable ultrasound system is built to help make you fast. The compact diagnostic ultrasound machine is designed for point-of-care efficiency, allowing clinicians to move quickly and confidently from patient to patient.

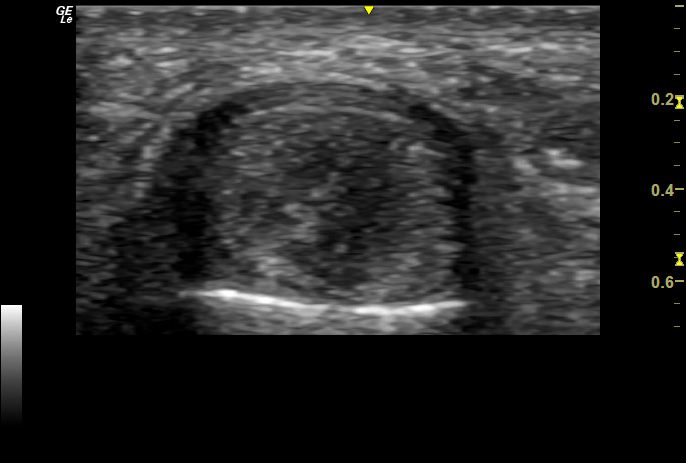

Superior Imaging for Different Medical Applications

Early diagnosis, objective treatment decisions, and monitoring a patient’s progress are everyday challenges in rheumatology and musculoskeletal care. When rheumatologists met with GE scientists, they requested user-friendly ultrasound tools to quantify low blood flow and improve repeatability of follow-up exams. The GE LOGIQ e portable ultrasound system provides advanced features and out-of-the-box imaging optimized to help detect inflammation — making the technology seamless so you can focus on patient care. Whether you’re working through an overbooked schedule or measuring productivity for business efficiency, the LOGIQ e ultrasound machine was built for speed and clinical accuracy.

Crisp imaging and reliable quantification are essential for evaluating therapy response. To support confident decision-making, the GE LOGIQ e delivers consistently high-resolution images, ensuring clarity and diagnostic confidence in every exam.
