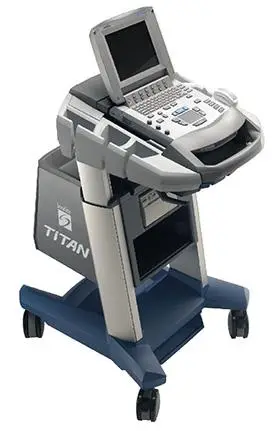

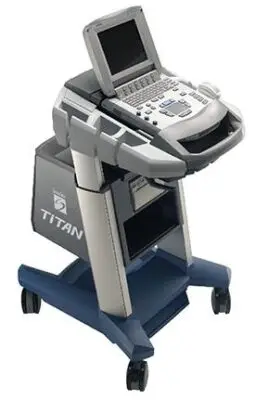

Sonosite Titan

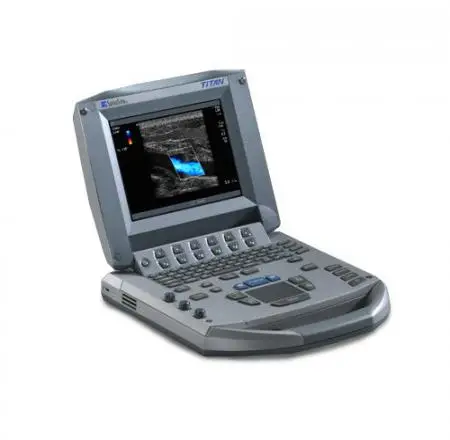

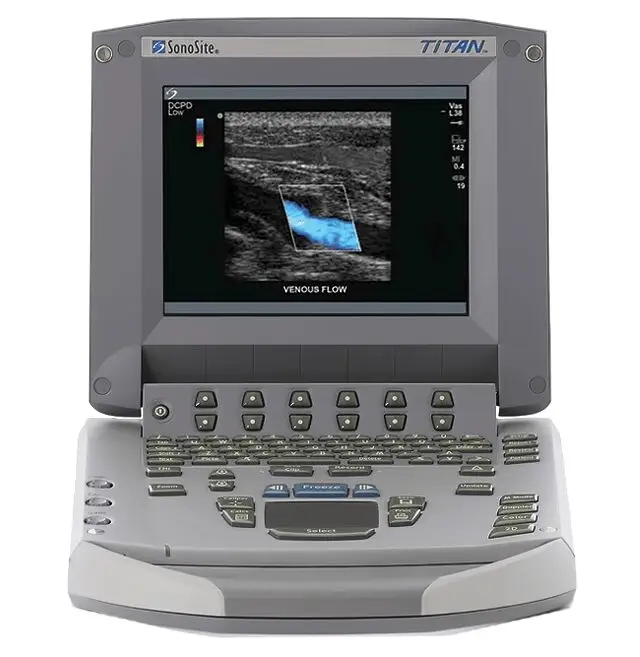

The TITAN system is a portable, software-controlled, ultrasound system using all-digital architecture. The system is used to acquire and display high-resolution, real-time ultrasound images: 2D, color power Doppler (CPD), directional color power Doppler (DCPD), Color Doppler (Color), Tissue Harmonic Imaging (THI), M Mode, pulsed wave (PW) Doppler, and continuous wave (CW) Doppler. The system has cine buffer, image zoom, labeling, biopsy, measurements, calculations, a USB connection for image transfer, image storage, image review, printing, recording, and the ability to archive Doppler with audio output to a videotape.


Key Features of Sonosite Titan

System accessories include the following: TITAN mobile docking system, TITAN MDS Lite, TITANmini-dock, Triple Transducer Connect, a power supply, a battery, ECG cable, video and printer cables, SiteLink Image Manager 2.2 software, and DICOM connectivity. See the TITAN Accessory User Guide for information on the accessories.

Width: 276.86 mm (10.9 in)
Height: 76.2 mm (3 in)
Weight: 3.49 kg (7.7 lbs)
8.4” (diagonal) TFT color Liquid Crystal Display
64MB card stores 128 images (approx)
USB cable from the system
Distance calipers – two sets
Tissue Harmonic Imaging (THI)
Velocity color flow Doppler


  • Ob/Gyn
  • Anesthesia
  • Urology
  • Vascular / Vascular Access
  • MSK
  • Breast Imaging
  • Small Parts
  • Cardiac
  • Emergency Medicine

▶ C8/8-5 MHz 8 mm microcurved array

▶ C11/8-5 MHz 11 mm microcurved array

▶ C15/4-2 MHz 15 mm microcurved array

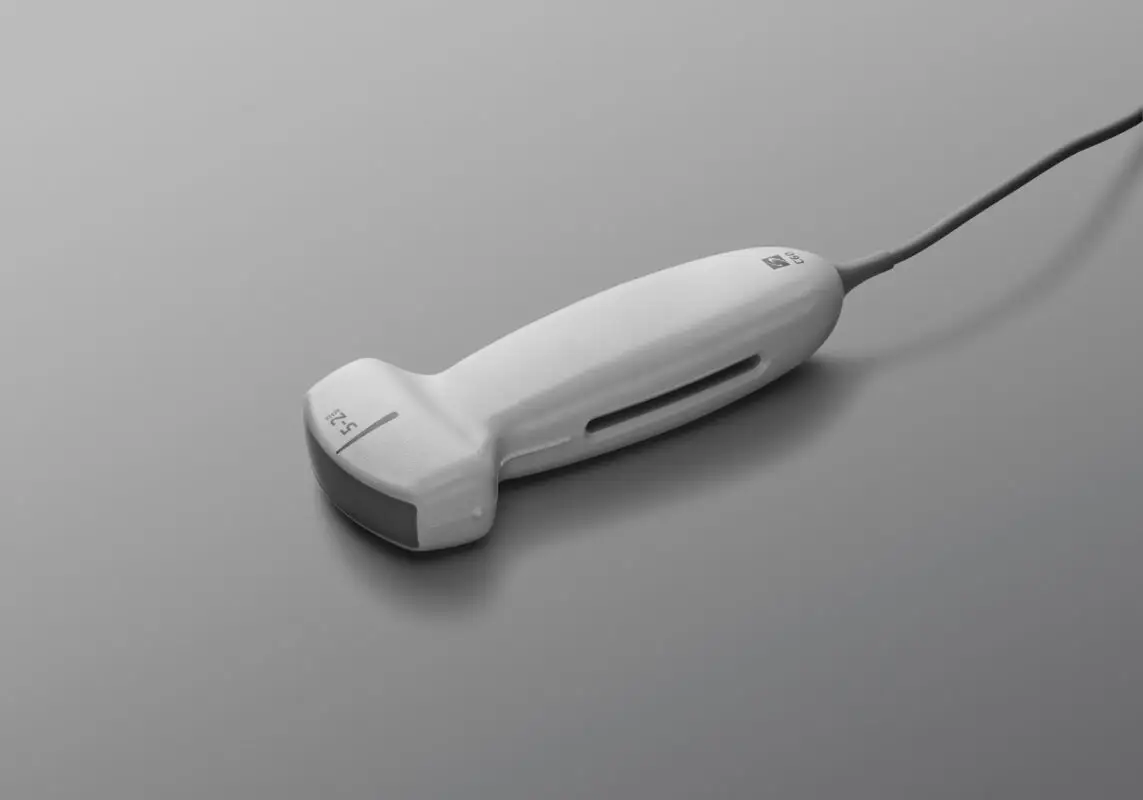

▶ C60/5-2 MHz 60 mm curved array

▶ HST/10-5 MHz 25 mm linear array

▶ ICT/8-5 MHz 11 mm intracavitary array

▶ L25/10-5 MHz 25mm linear array

▶ L38/10-5 MHz 38 mm linear array

▶ Composite video output (NTSC/PAL) to video cassette recorder, video printer or external monitor.

▶ Connect to a PC via USB to download high resolution bitmap images.

▶ S-video output

▶ Ethernet output

▶ VGA output

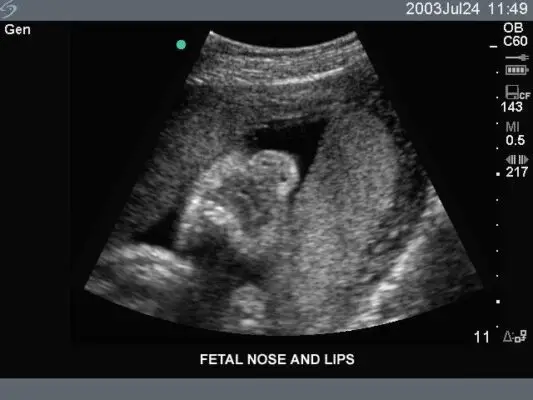

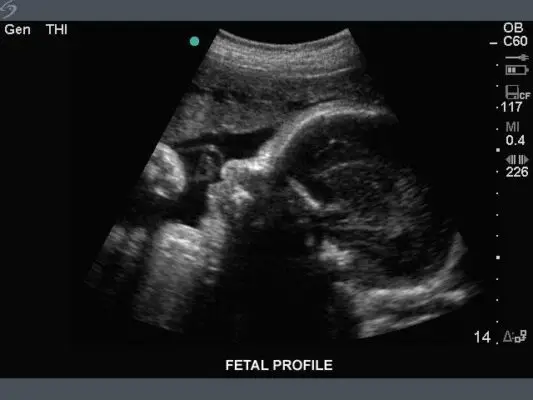

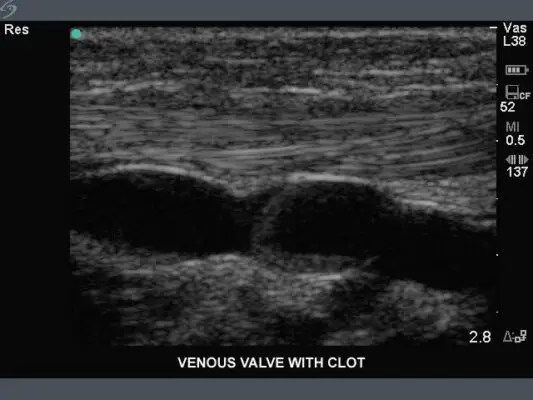

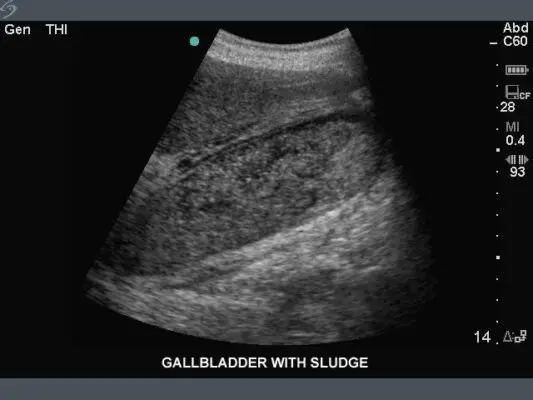

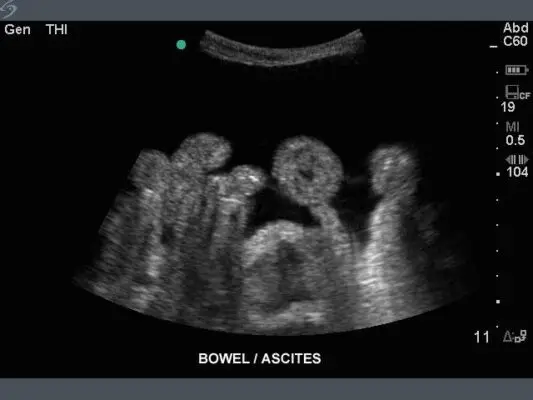

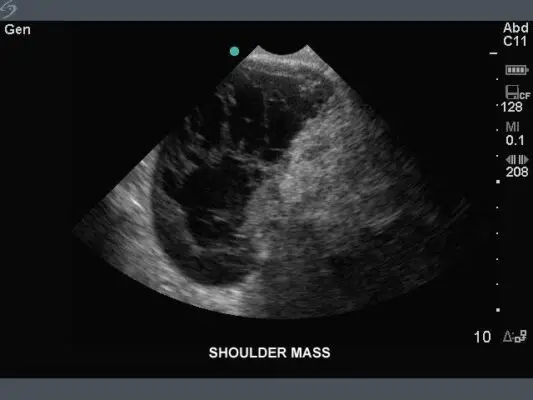

Clinical Images
