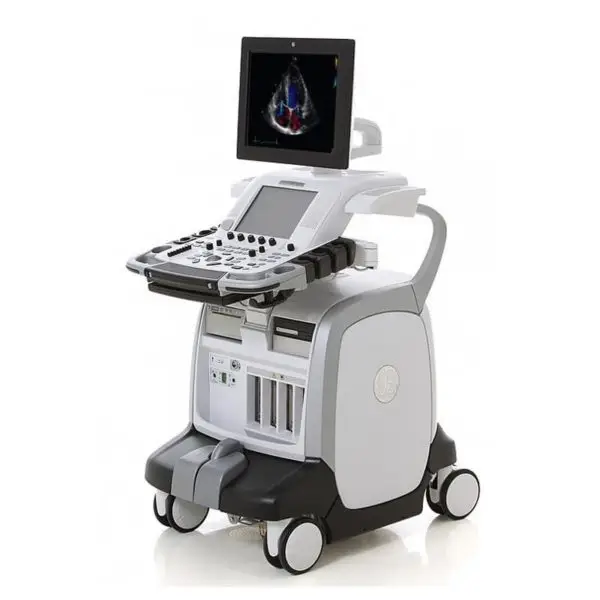

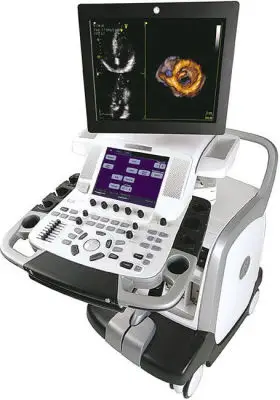

GE Vivid E9 With XDclear

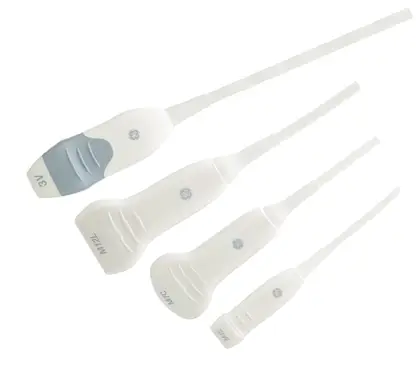

Whether in TTE or TEE, capture the entire heart in a single beat. Image a valve, or the entire ventricle with excellent image quality. And break down the barriers to routine day-to-day 4D imaging, from acquisition, through navigation and quantification, to archiving. Vivid E9 is GE Healthcare’s first cardiovascular ultrasound system built specifically for 4D imaging—from ergonomics to image acquisition to data management. Available in both 2D and 4D configurations. Featuring our Accelerated Volume Architecture 4D platform for increased processing power compared to GE Healthcare’s previous 4D scanner. Vivid E9 handles 2D imaging with equal power, precision, and agility, made possible with our 4V-D transducer, the secondgeneration 4D transducer, and the M5S/M5Sc transducers single-crystal matrix array and XDclear transducer technology.


KEY FEATURES OF GE Vivid E9 with XDclear

GE’s exclusive and patented beam-forming technology, the Accelerated Volume Architecture, provides several times the power of traditional GE ultrasound systems with increased volume size for full volume single beat, as well as for highvolume rate multi-beat 4D acquisition. Using both coherent and harmonic image processing, the system provides computational power, ease of imaging, workflow flexibility and product upgradeability.

17″ HD LCD 1280*1024
Tilt/Rotate Adjustable Monitor
4 USB ports
Quantitative TVI Stress Echo Analysis
4 Probe Ports
Net Weight: 308 lbs (140 kg)
10.4″ High Resolution Color Touch LCD screen
Integrated DVD-R/W
Independent Steer & Lockable Wheels


  • Cardia
  • Abdominal
  • Peripheral vascular
  • Fetal/obstetrics
  • Pediatric
  • Small organ
  • Adult cephalic
  • Musculoskeletal
  • Transesophageal

▶ Anacrome 3D Glasses

▶ Biopsy Guide

▶ Bite Guards

▶ Black and white printer

▶ Color printer

▶ Digital Video Stream Recorder

▶ ECG Cable Set

▶ Laser Printer

▶ RealD 038 Polarized 4D Glasses

▶ Stereo Glasses for 3D visualization

▶ TEE Cleaning and Storage System

▶ TEE Probe adapter for 6T-RS/6Tc-RS/9T-RS

▶ TEE Storage Rack

▶ USB Foot Switch-3 Buttons

▶ USB Memory Key 4GB

▶ USB Memory Key 8GB

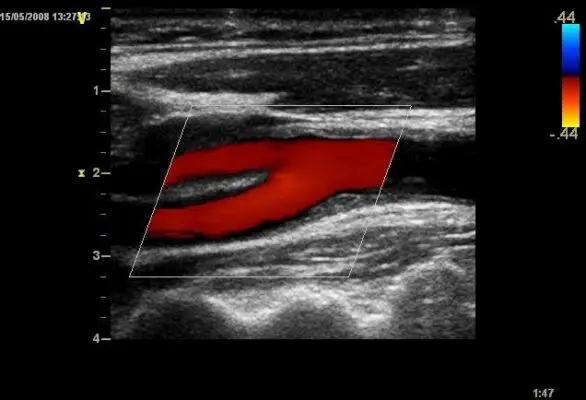

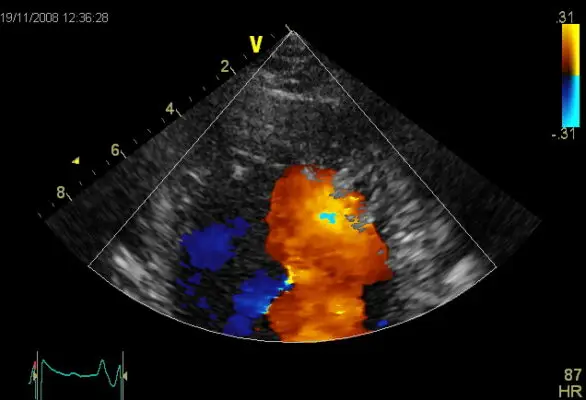

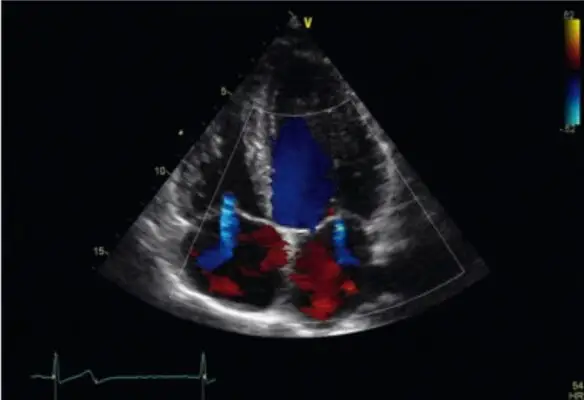

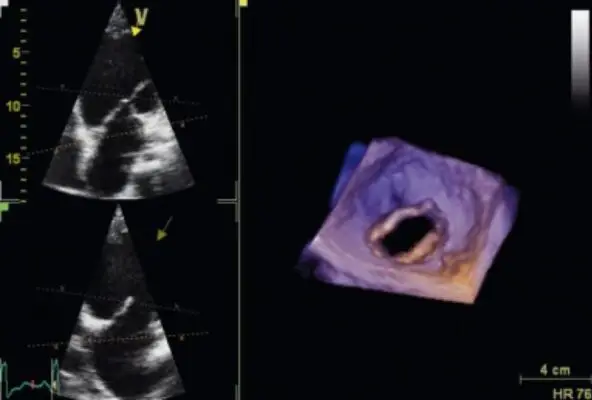

Clinical Images
