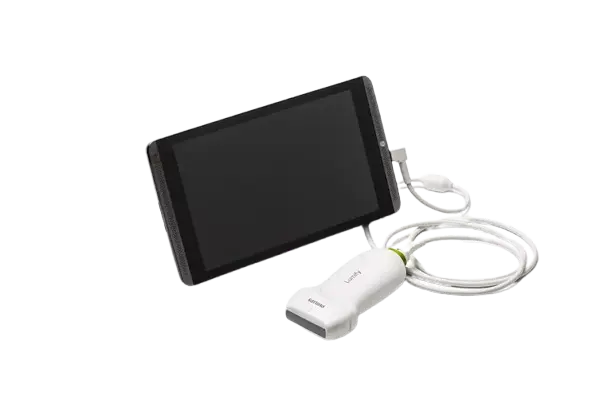

Philips Lumify L12-4 Linear Array Probe

Philips Lumify l12-4 Linear Array Probe 12 to 4 MHz extended operating frequency range – Aperture size: 34mm – 2D, Pulsed Wave and steerable color Doppler, M-mode, advanced XRES, multivariate harmonic imaging, SonoCT and B-line detection in lung imaging – High resolution imaging for shallow applications: soft tissue, vascular, superficial, musculoskeletal and lung – Center line marker – USB-C transducer with replaceable cable.

Brand – Philips

Transducer Type – Linear

Frequency: 4 to 12 MHz extended operating frequency range

Weight: 108 g/3.8 oz (without cable)

Elements: 128 elements

FOV: 34.5 mm field of view

Applications: High resolution imaging for lung, musculoskeletal, soft tissue, superficial and vascular applications

Dimensions: 11.4 cm x 4.5 cm/4.5 in x 1.8 in (L x W)

More Features:

Automatically adjusted focal zone based on preset focal zone
Continuous dynamic receive focusing
Supports 2D, color Doppler and Tissue Harmonic Imaging
Lightweight replaceable USB cable

Philips Lumify L12-4 Linear Array Probe
