Sonosite X-Porte offers you an entirely new ultrasound experience by providing these revolutionary tools in a unique, integrated system exclusive to SonoSite

Easy Designing

Designed for easy cleaning, the sealed touchscreen has no buttons or levers for pathogens to hide behind

Display Unit

The large monitor 19″ tilts and 12.1″ capacitive touchscreen, Multi-touch gestures

System Dimension

Height: 65 inch (monitor up) and 42.2 inch (monitor down), Width: 21.2 inch

sonosite-x-porte-ultrasound-machine-close-view-tuss

Designed for portability

Easily maneuver Sonosite X-Porte around beds and exam tables.

Power Supply

System operates via battery or AC power Rechargeable Lithium-ion Battery

Software

SonoSite Patient Data Archival Software (PDAS) for Wireless/Wired Image management

About Sonosite X-Porte

Sonosite X-Porte ultrasound machine represents an entirely new approach to clinical ultrasound. Its imaging, features and educational resources are fluidly brought together in a convenient, all-in one kiosk design.

At the sweep of your hand, it responds so quickly and intelligently to your imaging needs, you’ll know it was created precisely for professionals like you. Its self-explanatory control panel makes system navigation a breeze, and its sealed touch screen has no buttons for pathogens to hide behind.

Sonosite X-Porte ultrasound machine for sale slender profile makes it easy to maneuver alongside beds and exam tables for point-of-care visualization and procedures. For portability and durability during transport, its screen folds down and its stand lowers making X-Porte even more compact for navigating busy corridors. The X-Porte ultrasound core can be detached easily from the kiosk to provide another configuration option. For servicing, nothing could be more convenient than X-Porte’s five-year warranty and removable engine.

sonosite-x-porte_ultrasound-machine-for-sale-img-01-tuss

Imaging Solutions

Better image visualization helps with decision-making for improved patient care

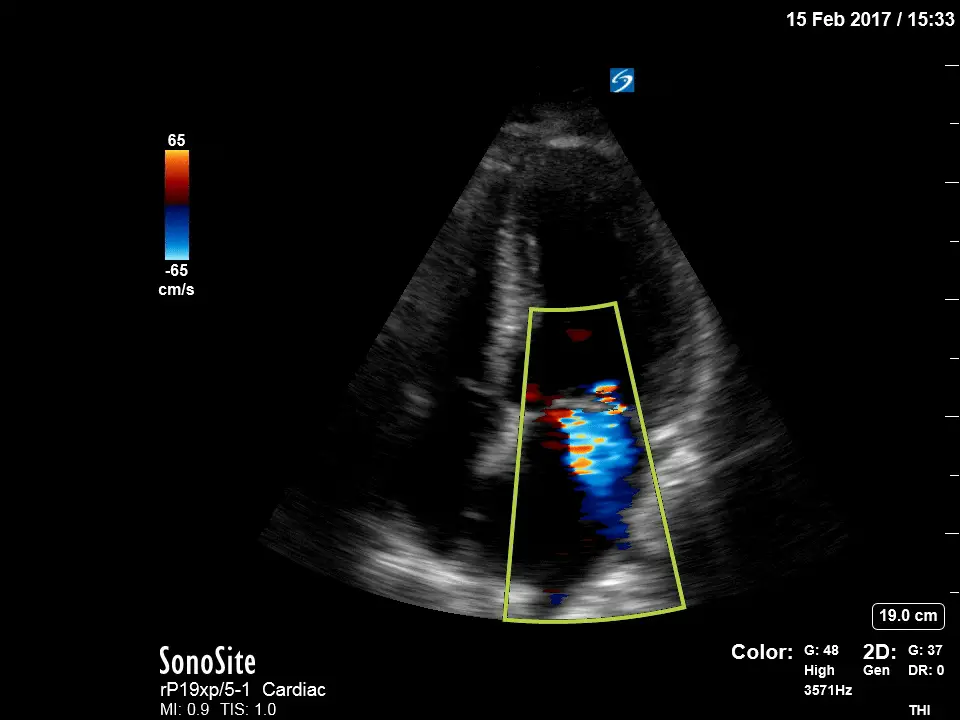

Cardiac Apical 4 Chamber

sonosite_ultrasound_with_transducer_probe_rP19xp_Cardiac_Apical_4_Chamber_with_Color_Video

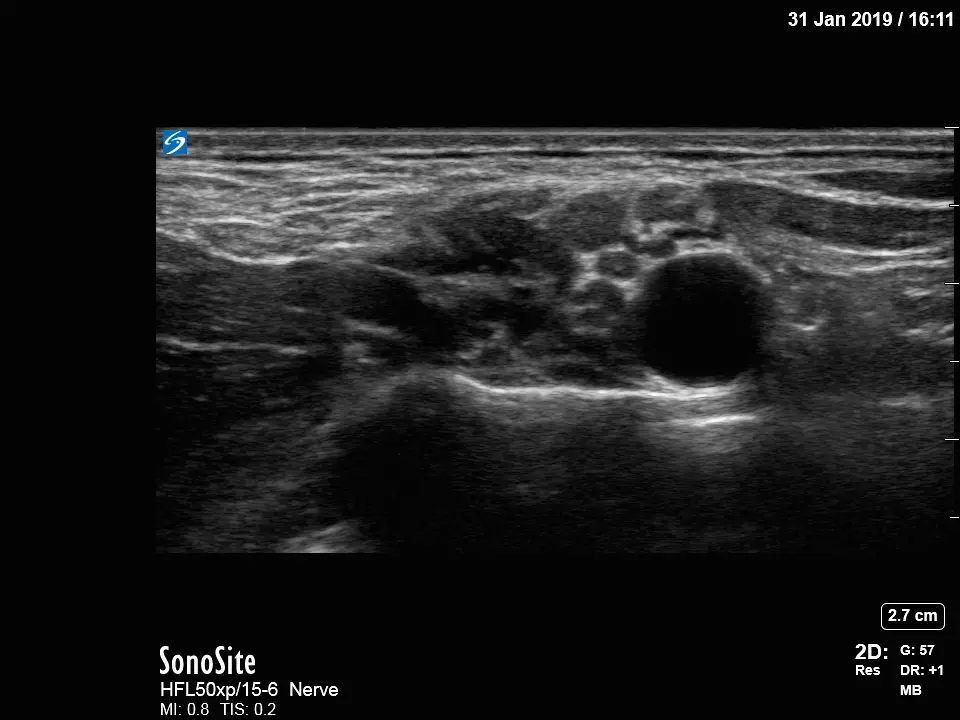

NRV Supraclavicular Brachial Plexus

Sonosite_X-Porte_Ultrasound_Example_HFL50_NRV_Supraclavicular_Brachial_Plexus

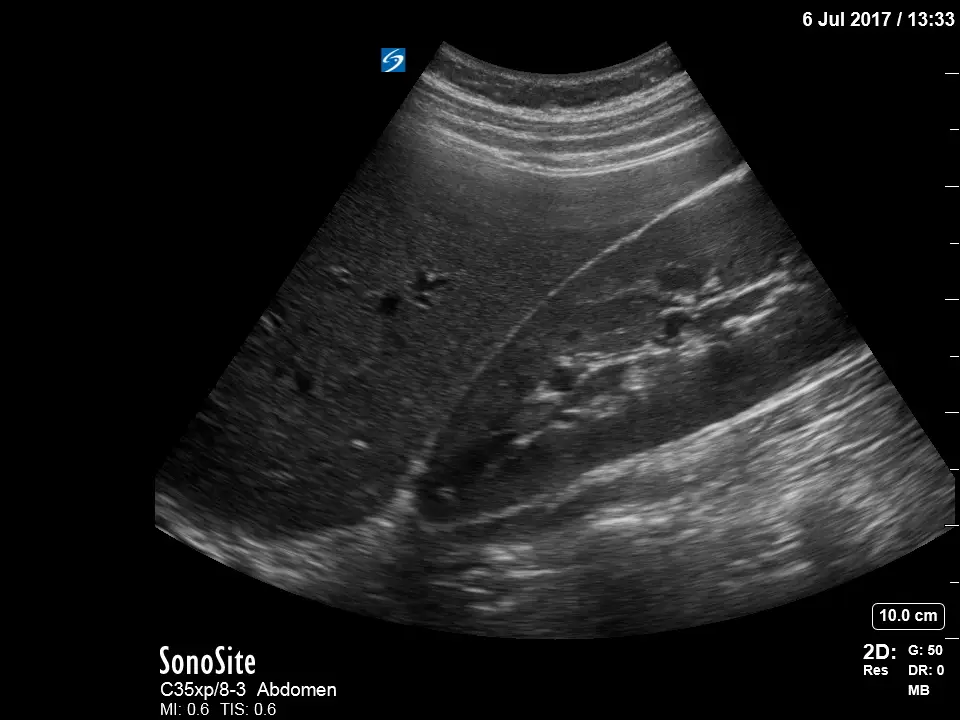

Abdominal Right Upper Quadrant RUQ

Sonosite_X-Porte_Ultrasound_with_C35xp_transducer_probe_Abdominal_Right_Upper_Quadrant_RUQ

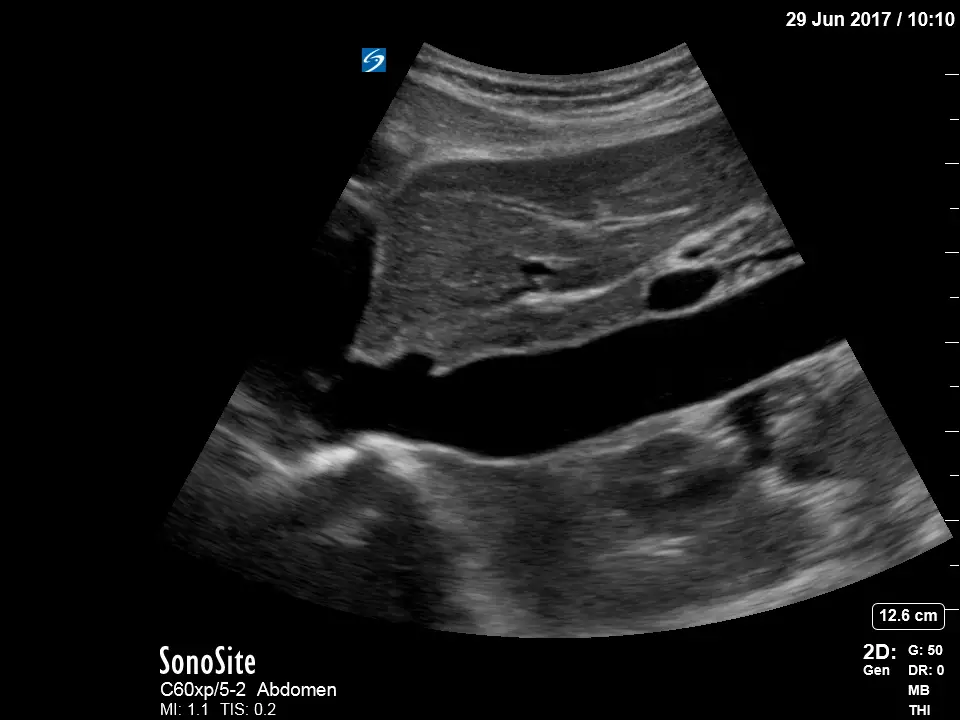

Abdominal Inferior Vena Cava IVC

Sonosite_X-porte_Ultrasound_with_C60xp_transducer_probe_Abdominal_Inferior_Vena_Cava_IVC

Posterior Knee Bakers Cyst

Sonosite_x-porte_xporte_ultrasound_HFL50xp_Posterior_Knee_Bakers_Cyst_HFL50_MSK_Ankle_Fluid

Compatible Probes

Sonosite C11xp

sonosite-c11-xp-ultrasound-probe-tuss

Bandwidth: 8 – 5 MHz

Scan Depth: 15 cm

Applications: Abdominal, Arterial

Sonosite C11xp

sonosite-c35xp-ultrasound-probe-tuss

Bandwidth: 8 – 3 MHz

Scan Depth: 15 cm

Applications: Musculoskeletal, Nerve

Sonosite C60xp

sonosite-c60-xp-ultrasound-probe-tuss

Bandwidth: 5 – 2 MHz

Scan Depth: 30 cm

Applications: Abdominal, Gynecology

Sonosite D2xp

sonosite-d2xp-ultrasound-probe-for-sale-tuss

Bandwidth: 2 MHz

Scan Depth: N/A

Applications: Cardiology

Sonosite HFL38xp

sonosite-hfl38xp-ultrasound-probe-for-sale-tuss

Bandwidth: 13 – 6 MHz Linear

Scan Depth: 6 cm

Applications: Arterial, Breast, Lung

Sonosite HFL50xp

Bandwidth: 15 – 6 MHz

Scan Depth: 6 cm

Applications: Breast, Musculoskeletal

Sonosite HSL25xp

sonosite-HSL25xp-ultrasound-probe-tuss

Bandwidth: 13 – 6 MHz Linear

Scan Depth: 6 cm

Applications: Arterial, Lung, Nerve

Sonosite ICTxp

sonosite-ICTxp-ultrasound-probe-for-sale-tuss

Bandwidth: 9 – 5 MHz

Scan Depth: 15 cm

Applications: Gynecology, Obstetrics

Sonosite L25xp

sonosite-l25xp-ultrasound-probe-tuss

Bandwidth: 13 – 6 MHz

Scan Depth: 6 cm

Applications: Arterial, Venous, Lung

Sonosite L38xp

sonosite-l38xp-ultrasound-probe-tuss

Bandwidth: 10 – 5 MHz

Scan Depth: 9 cm

Applications: Arterial, Venous, Lung

Sonosite p10xp

sonosite-p10xp-ultrasound-probe-tuss

Bandwidth: 8 – 4 MHz

Scan Depth: 15 cm

Applications: Abdominal, Neonatal

Sonosite rP19xp

sonosite-rP19xp-ultrasound-probes-tuss

Bandwidth: 5 – 1 MHz Phased

Scan Depth: 35 cm

Applications: Lung, Obstetrics, TCD

Sonosite TEExp

sonosite-TEExp-ultrasound-probe-for-sale-tuss

Bandwidth: 8 – 3 MHz Phased

Scan Depth: 18 cm

Applications: Cardiology

Downloads

Sonosite X-Porte Brochure
sonosite-x-porte_ultrasound-machine-for-sale-patient-care-tuss

Sonosite X-Porte constantly evolves to meet your needs

Since inception, Sonosite X-Porte has continuously evolved to meet your needs. Multiple software upgrades expanded functionality, while sever additional transducers ensure you have the tools you need. We also added new exam types, measurements, and calculations. At your request, we’ve made numerous workflow and menu enhancements.
