Portable Ultrasound for Veterinary and Equine Imaging

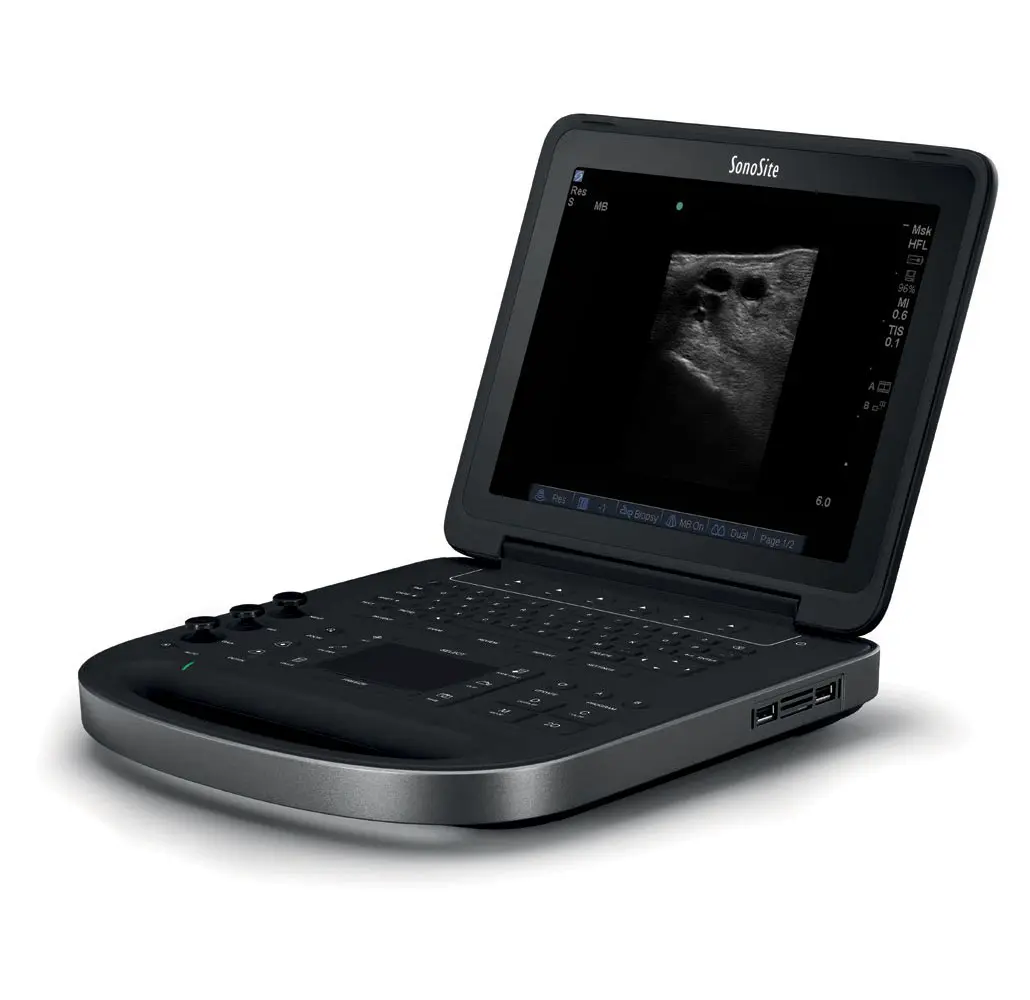

The SonoSite Edge II Vet is a portable ultrasound system designed for veterinary work, with a sealed keyboard, anti-reflective display, rugged construction and a range of transducers for equine and small animal imaging.
Condition: Used & Refurbished | Warranty: Varies by Unit
Large anti-reflective display designed for clear image viewing.
Portable system weight with the battery installed.
Fast startup to get from power-on to imaging quickly.
Operate from battery power or connect directly to AC power.

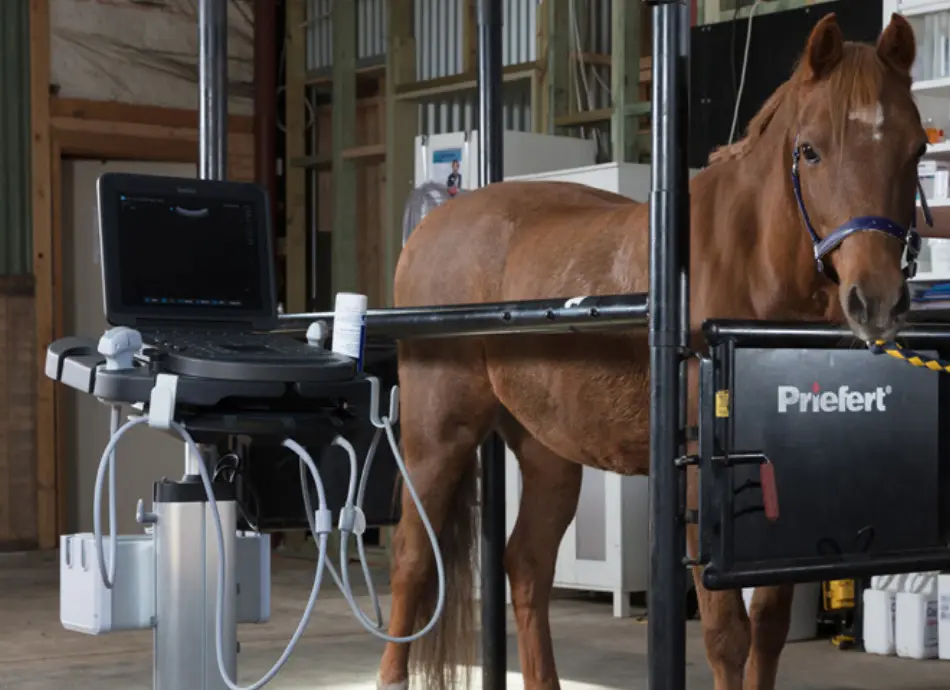

Veterinary ultrasound can take place in a clinic, examination room, barn or field setting. The SonoSite Edge II Vet combines a portable system design with imaging modes and transducer options that can support a range of veterinary examinations.

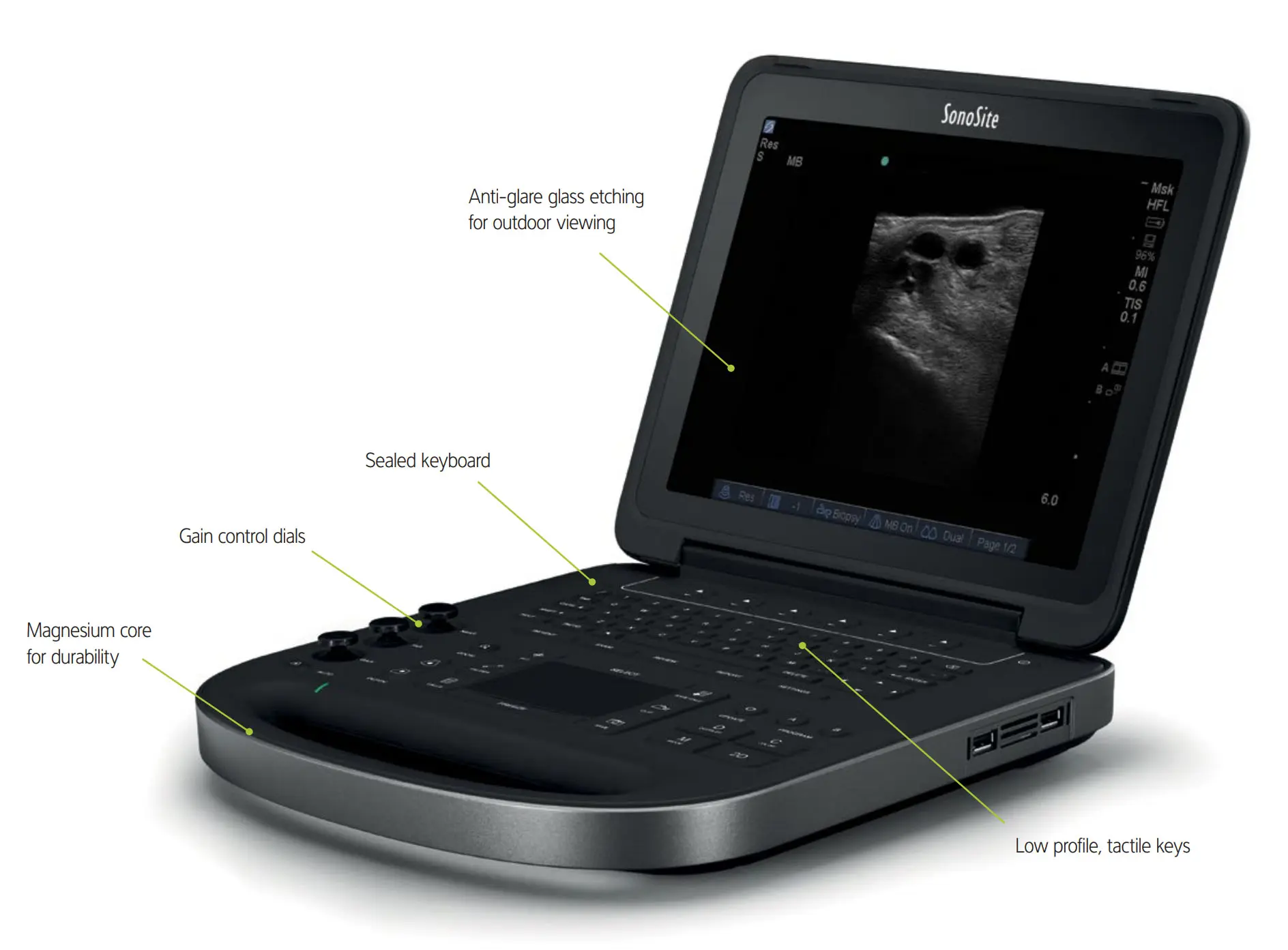

Its veterinary configuration includes features such as a sealed keyboard, anti-reflective glass, gain control dials and transducer options designed for veterinary applications. The system also supports USB connectivity for image and study transfer.
Sealed Keyboard: A sealed keyboard helps simplify cleaning and everyday use in clinical environments.
Anti-Reflective Display: The anti-reflective glass helps reduce glare while viewing images.

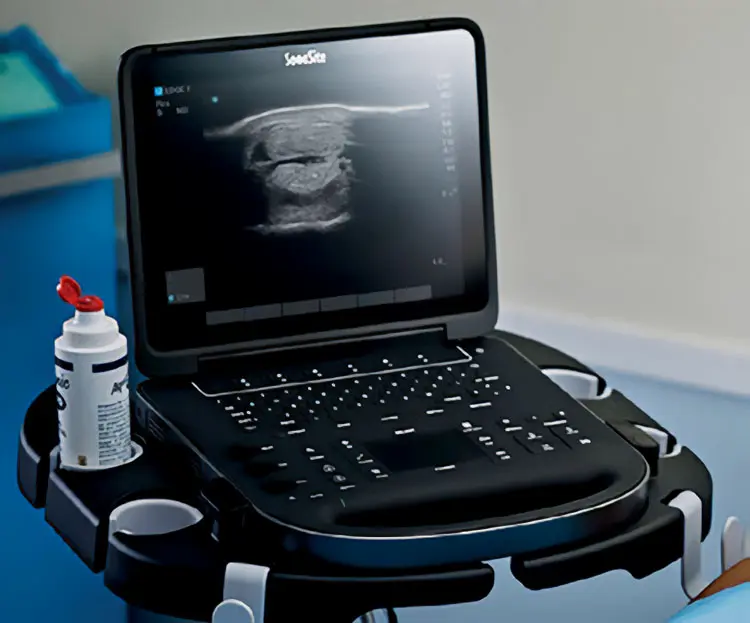

Portable Design: The compact system can be used where the examination takes place.
The Edge II platform provides multiple imaging modes and image optimization controls for different examination needs. Available imaging modes depend on the transducer and exam type.
2D Imaging: Standard two-dimensional ultrasound imaging for real-time visualization.
M-Mode: Supports motion-based imaging for applicable examinations.
Color / Doppler: Color and Doppler modes are available with compatible transducers and exam types.
DirectClear Technology: DirectClear Technology is available on selected transducers and is designed to improve imaging performance through transducer design improvements.
Note: Imaging capabilities vary by transducer and system configuration.
Display
12.1-inch color LCD
Display Type
Anti-reflective / anti-glare glass
System Weight
9.2 lb / 4.18 kg with battery
Dimensions
12.8 × 12.1 × 2.5 inches
Power
AC power / rechargeable battery
Battery Runtime
Up to 2 hours, depending on imaging mode and display brightness
Startup Time
Less than 25 seconds
Imaging Modes
2D, M-Mode, Color Doppler, Doppler
USB
USB connectivity / 2 USB ports
Network
Ethernet / TCP-IP
Data Transfer
USB and network connectivity
DICOM
Supported depending on system configuration
Keyboard
Sealed silicone keyboard
Veterinary Transducer
L52x Vet
Armored Cable
Available on selected transducers
The Edge II Vet was specifically positioned for veterinary use with a strong focus on equine imaging. The L52x Vet transducer provides a dedicated option for veterinary examinations.
High-frequency linear transducers can be used for superficial structures such as tendons and other musculoskeletal anatomy.
Compatible linear and curved transducers provide options for reproductive and deeper imaging applications.
Curved, linear and phased-array transducers provide different imaging options for small animal examinations.

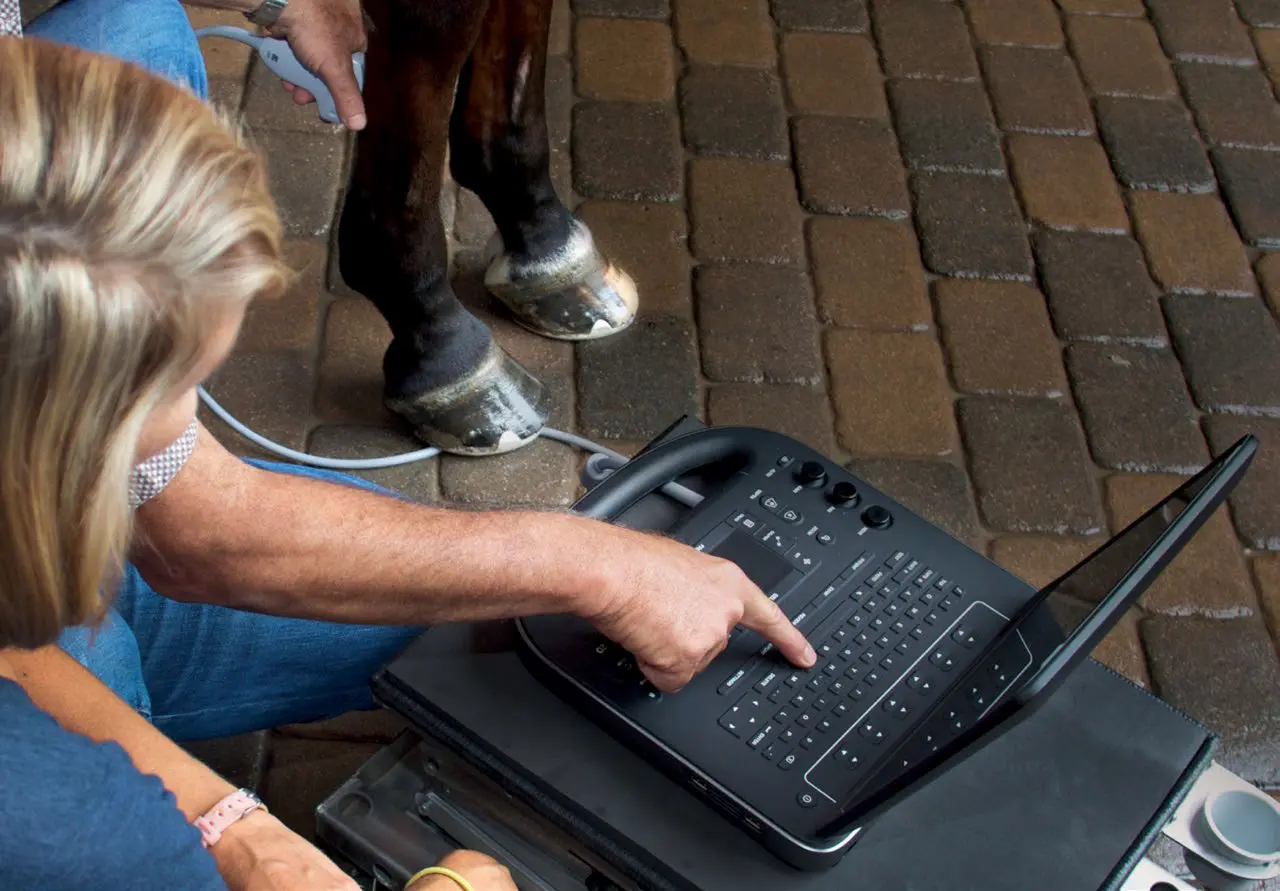

The Edge II Vet uses a sealed keyboard designed for the practical demands of veterinary use.
Armored Cable technology is available on selected transducers and adds protection to the transducer cable for demanding working environments.
Equip Your Practice with Dependable Veterinary Imaging
Whether you are managing ambulatory equine calls out in the barn or conducting daily diagnostic exams in a companion animal hospital, the SonoSite Edge II Vet provides the durability and imaging clarity your practice demands. Available in both new and refurbished configurations with your choice of specialized veterinary transducers. Reach out today to check current inventory and get a tailored configuration for your clinic.

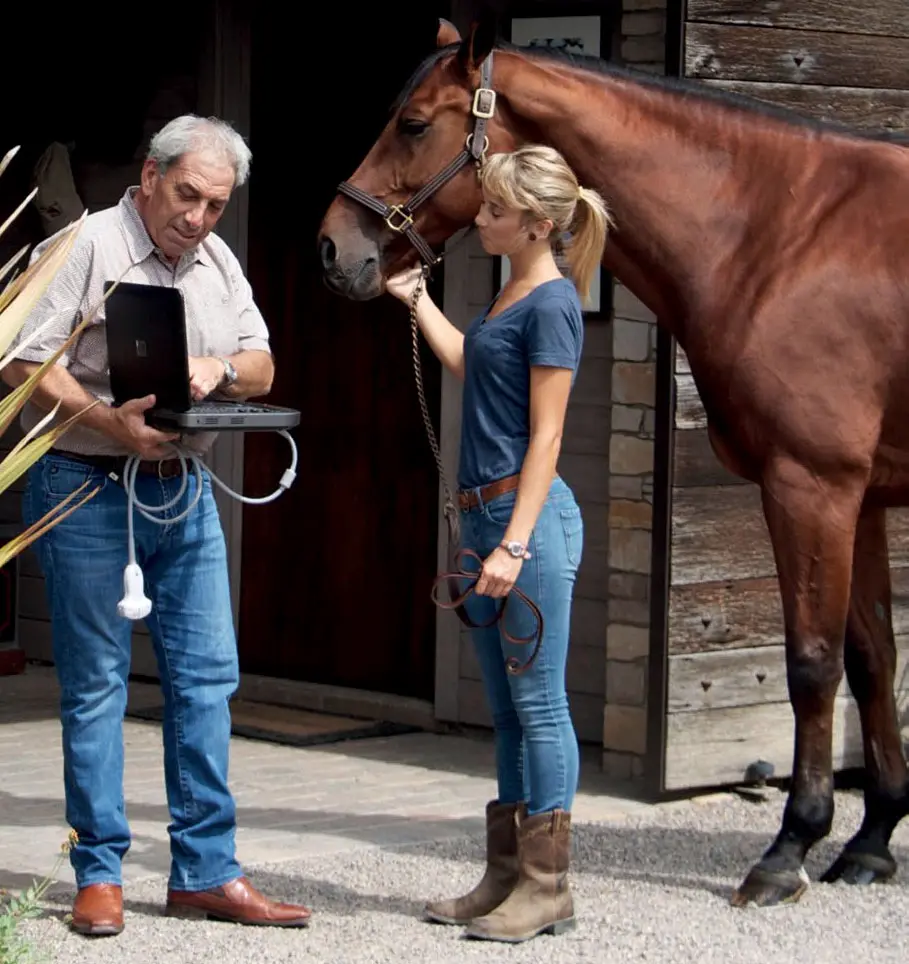

Veterinary examinations rarely stay confined to a single treatment room. Practitioners frequently need to transition between hospital wards, examination stalls, barn aisles, and mobile ambulatory trailers. The SonoSite Edge II Vet was engineered around this mobile reality, allowing you to bring diagnostic-quality ultrasound directly to the animal rather than moving an injured or distressed patient to a stationary machine.
Designed for seamless operation, the system transitions smoothly between direct AC wall power and its internal rechargeable lithium-ion battery without losing configuration settings. Combined with cold-boot imaging in under 25 seconds and streamlined USB data export, the Edge II Vet supports an efficient diagnostic workflow in high-volume clinics and remote field environments alike.
The system can be ready for scanning in less than 25 seconds.
Battery operation provides up to two hours depending on imaging mode and display brightness.
The system includes USB connectivity for storing and transferring ultrasound studies.
The Edge II Vet features Auto-Export capabilities for automatic image transfer at exam close.
Frequency: 10 – 5 MHz
Scan Depth: 15 cm
Type: Linear
Frequency: 8 – 3 MHz
Scan Depth: 16 cm
Type: Curved
Frequency: 8 – 5 MHz
Scan Depth: 13 – 13.5 cm
Type: Curved
Frequency: 5 – 2 MHz
Scan Depth: 30 cm
Type: Curved
Frequency: 13 – 6 MHz
Scan Depth: 6 cm
Type: Linear
Frequency: 15 – 6 MHz
Scan Depth: 6 cm
Type: Linear
Frequency: 13 – 6 MHz
Scan Depth: 6 cm
Type: Linear
Frequency: 13 – 6 MHz
Scan Depth: 6 cm
Type: Linear
Frequency: 10 – 5 MHz
Scan Depth: 9 cm
Type: Linear
Frequency: 8 – 5 MHz
Scan Depth: 13 cm
Type: Curved / Special Use
Frequency: 8 – 4 MHz
Scan Depth: 14 cm
Type: Phased Array
Frequency: 5 – 1 MHz
Scan Depth: 35 cm
Type: Phased Array
Frequency: 8 – 3 MHz
Scan Depth: 18 cm
Type: Multi / Special Use
Frequency: 8 – 5 MHz
Scan Depth: 11.5 cm
Type: Curved
Find quick answers to the most common questions about our services, process, and policies.
Yes. SonoSite Edge II Vet systems may be available in both new and refurbished condition. Availability, included accessories and warranty coverage vary by unit. Contact us to confirm current inventory.

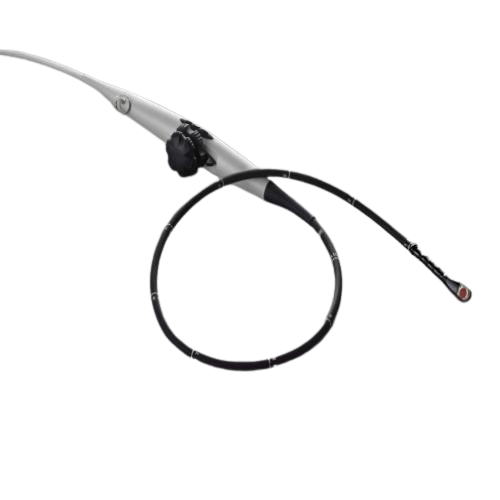

Compatible Edge II transducers include the C8x, C11x, C35x, rC60xi, HFL38xi, HFL50x, HSL25x, ICTx, L25x, L38xi, L52x, P10x, rP19x and TEExi. The L52x is specifically identified for veterinary use. Available features and exam types depend on the transducer and system configuration.
The L52x is identified by FUJIFILM SonoSite as a veterinary-use transducer. It is a 10-5 MHz linear transducer with a listed scan depth of 15 cm.
Yes. The Edge II Vet was specifically positioned for veterinary use with an emphasis on equine imaging. The veterinary materials also highlight the L52x rectal transducer and equine imaging applications.
The system can operate on battery power for up to two hours. Actual battery runtime depends on the imaging mode and display brightness.
The Edge II can be ready for scanning in less than 25 seconds.
Yes. The Edge II platform supports Doppler imaging, with available imaging modes depending on the transducer and exam type.
Yes. The Edge II Vet veterinary brochure highlights its sealed keyboard as part of the system's veterinary design.
Yes. The Edge II supports USB connectivity, and the veterinary brochure specifically highlights direct writing to USB 2.0 and Auto-Export for image transfer.
Warranty coverage varies by unit. Please contact us for the warranty details associated with the specific system you are considering.
