The Evolution of Point-of-Care Ultrasound (POCUS).
The R9 generation of the legendary GE LOGIQ e redefines portable ultrasound. Built for speed, simplicity, and precision, the R9 delivers flagship console-grade imaging inside a durable, lightweight laptop. With a larger 15.6-inch high-resolution display, an upgraded 90-minute battery, and an easy-to-clean sealed interface, it is the ultimate solution for MSK, anesthesia, vascular, and interventional procedures.
The GE NextGen LOGIQ e R9 represents the next evolution in point-of-care ultrasound (POCUS), building on the legendary reliability of its predecessors while introducing game-changing clinical upgrades. Driven by the powerful imaging engine found in GE’s flagship console systems, the refurbished R9 delivers crisp, high-resolution imaging in a highly portable package. It features a larger, brilliant 15.6-inch display for confident viewing even in brightly lit environments, alongside advanced imaging tools like CrossXBeam, SRI-HD, and precise Needle Recognition to ensure absolute accuracy during critical nerve blocks and MSK injections.

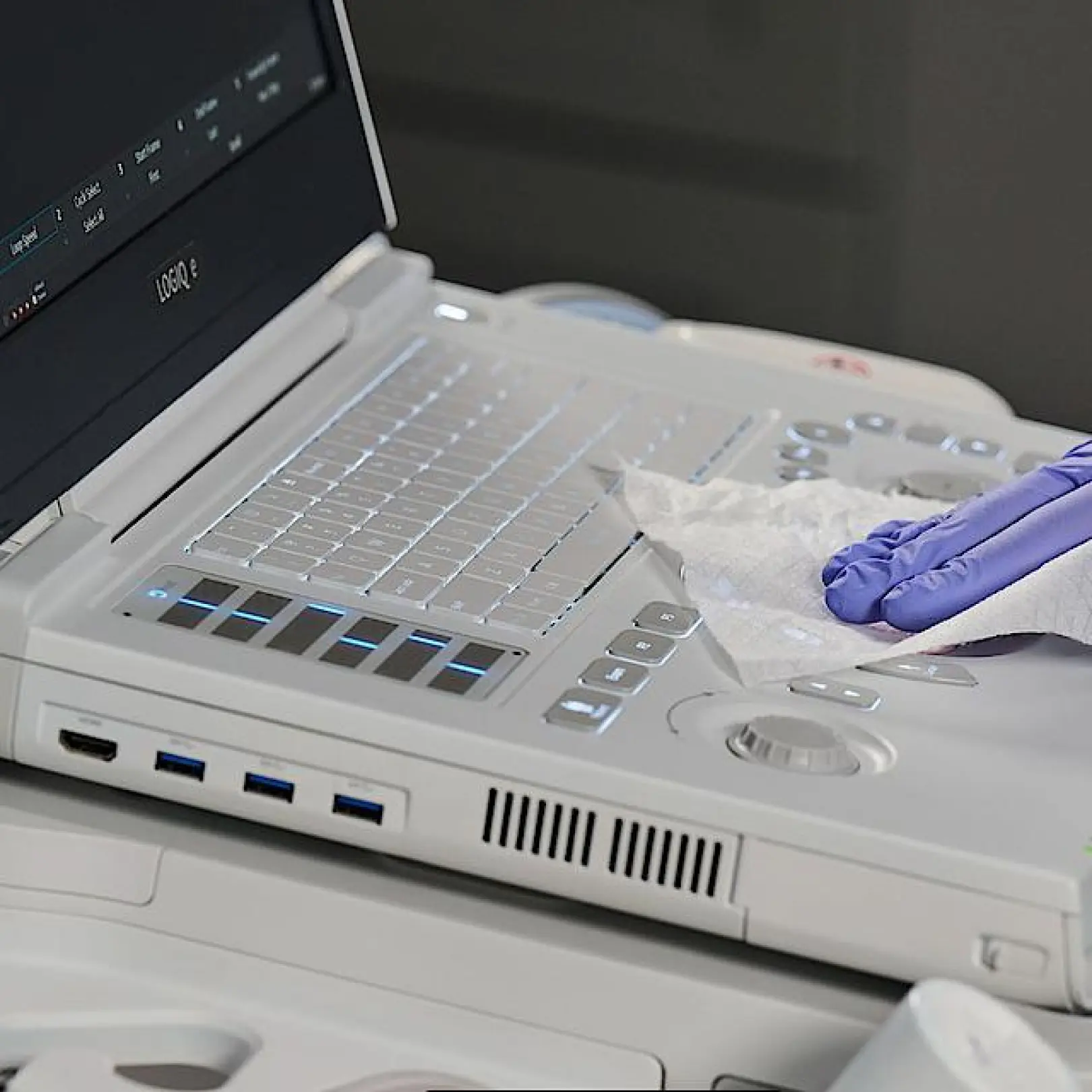

Designed with real world clinical efficiency in mind, the GE LOGIQ e R9 helps you move faster and safer. The traditional trackball has been replaced with a completely sealed, liquid-resistant wipeable trackpad, drastically simplifying infection control and sanitization between patients. Combined with an extended 90-minute battery life and a lightweight 11.5 lb design, this portable diagnostic ultrasound system ensures you are always ready at the point of care, delivering uncompromising performance wherever your patients need it most.
Specifications
Width
346 mm (13.62 in) console only
Height
70 mm (2.75 in) console only
Length (Depth)
295 mm (11.61 in) console only
Weight with Battery
Approximately 5.2 Kg (11.5 lbs)
Monitor
15.6 in High-Resolution Color LCD (Wide Viewing Angle)
Power
Voltage: 100-240 V AC, Frequency: 50/60 Hz, Power: Max. 130 VA
Operator Keyboard
Sealed Alphanumeric Keyboard, Liquid-Resistant Wipeable Trackpad, Digital TGC
Power Consumption
310 VA
System Battery
High-Capacity Lithium Ion Battery (Up to 90 minutes of active scanning)
Console Interfaces
DC Power Input, USB 3.0 (3 ports), HDMI, Ethernet
Connectors
1 Active Probe Port, LAN 10/100/1000 BaseT, Docking Cart Connector

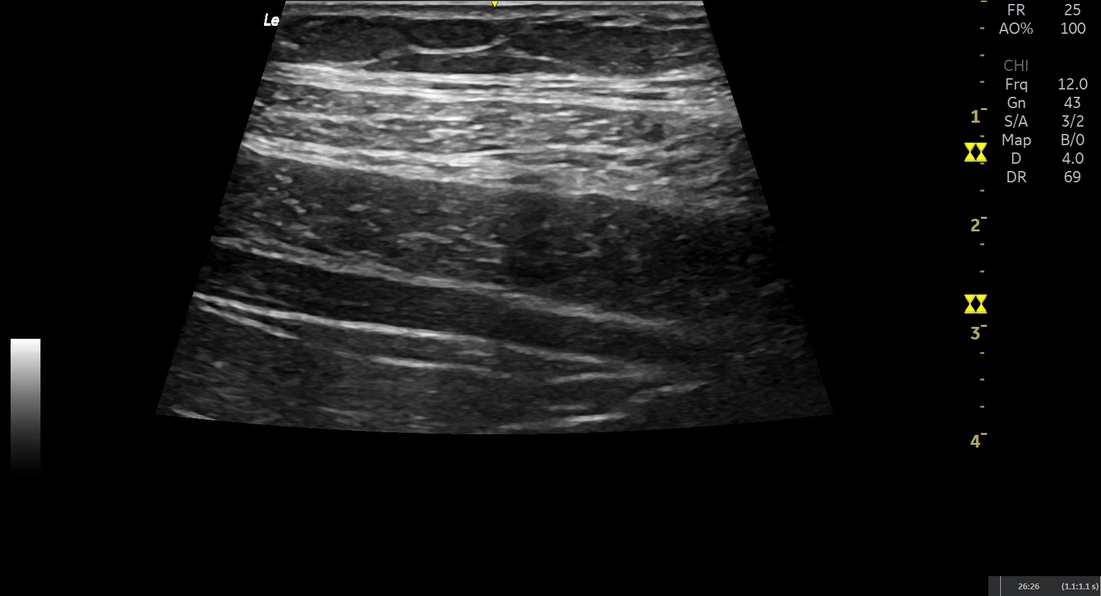

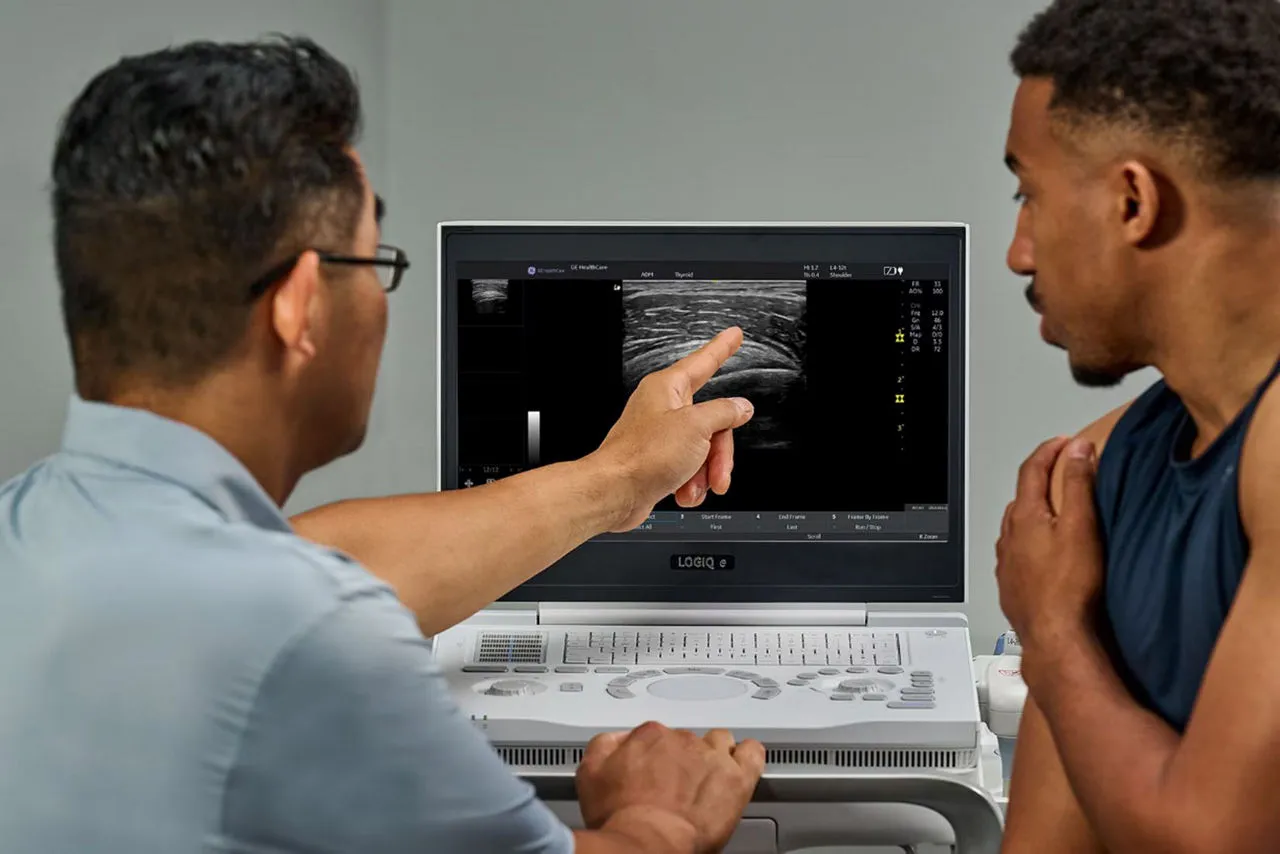

A fast and accurate regional block or joint injection requires seeing the target quickly and guiding the needle with absolute precision. That is exactly what the refurbished GE LOGIQ e R9 portable ultrasound system delivers. With its upgraded 15.6-inch high-resolution display, practitioners can see critical details more clearly, perform procedures efficiently, and be confident that the injection is administered in the exact right location even in difficult-to-scan or obese patients.
Getting the needle in the right place the first time is key to patient comfort and clinical efficiency. Crisp, console-grade imaging is at the core of the LOGIQ e R9, designed to help you act fast without compromising accuracy.

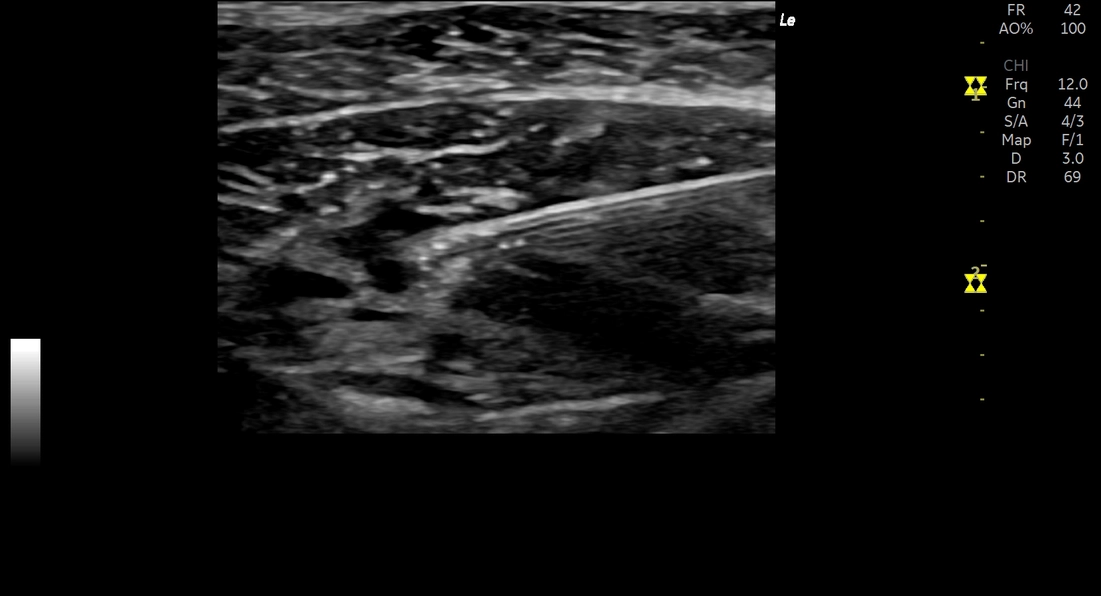

See the needle tip clearly: The LOGIQ e R9 utilizes advanced Needle Recognition technology. By processing two different types of ultrasound signals (one optimized for tissue and one for metal), it makes the needle stand out brilliantly while allowing separate control of its appearance, preventing anatomy distortion.
See the nerve and tissue: Tissue differentiation matters. The R9 imaging engine is powered by CrossXBeam and SRI-HD (Speckle Reduction Imaging) technology. This drastically reduces artifact noise and enhances borders, making the nerve stand out for confident anesthesia and regional block procedures.
CrossXBeam™ & SRI-HD: Combines ultrasound signals from multiple intersecting angles to sharpen tissue borders and significantly reduce artifact noise. Instead of manually tweaking settings, you get a consistently clear, highly defined image right out of the box—essential for confident MSK assessments and nerve blocks.
Advanced Needle Recognition: Losing sight of the needle tip during a block or injection is a major clinical challenge. The LOGIQ e R9 solves this by using two entirely separate types of ultrasound echo processing—one dedicated to tissue, and one specifically for metal. This makes the needle light up brilliantly on screen without washing out or distorting the surrounding anatomy.

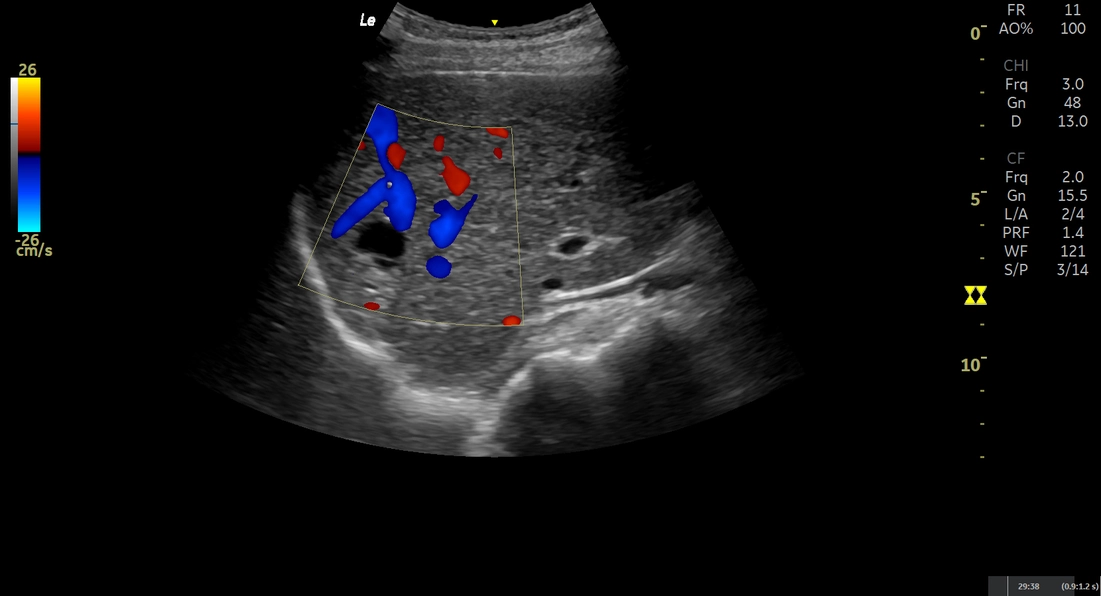

Comprehensive Imaging Modes: Go well beyond standard 2D and Color Doppler. The R9 acts as a true shared-service machine, supporting High-Res PDI to visualize tiny vessels in early disease stages , PW/CW Doppler for cardiac assessments, and even Strain Elastography to quantify tissue stiffness and assist in joint inflammation staging.
Advanced Easy3D: Sometimes a 2D slice isn’t enough to understand complex structures. You can use any validated transducer on the LOGIQ e system to construct clear, intuitive 3D models. It is an excellent tool for surgical planning and helps patients easily understand their own anatomical relationships.
The LOGIQ e system adapts to diverse clinical needs, providing dedicated capabilities for general imaging, anesthesia, musculoskeletal, interventional, emergency medicine, and critical care.
Enjoy console-grade performance in a design that weighs just 4.5 kg (9.92 lbs) without the battery. Move seamlessly between rooms with up to 90 minutes of active scanning battery life.
PDI quantification provides a numeric representation of the blood flow that may be associated with inflammation, tumors, and synovitis. This helps bring objectivity to patient evaluation.
The intuitive Scan Assistant provides sonographers with standardized exam protocols to guide them through all image acquisition steps, saving excessive keystrokes, reducing stress and fatigue, and maintaining exam consistency.

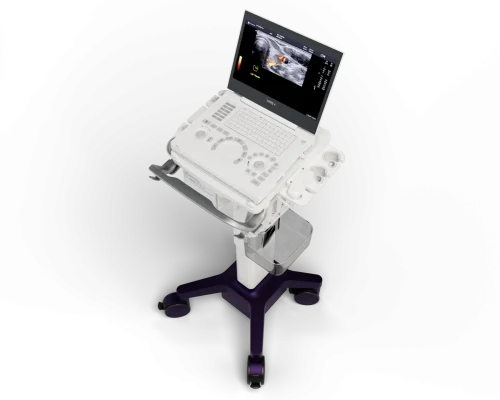

View scans with absolute clarity on the upgraded 15.6-inch LCD display. Leverage tools like Strain Elastography, which provides a relative measure of elasticity in a selected ROI to assist in joint inflammation staging, treatment planning, and monitoring.
Ensure seamless and secure integration into your hospital’s network with Encrypted DICOM® 3.0 connectivity. Additionally, utilize Imaging Insights to monitor the utilization of all your ultrasound systems.
Advanced Technologies for Effortless POCUS Imaging
Whether you are managing a high-volume emergency department or a specialized MSK clinic, the refurbished GE NextGen LOGIQ e R9 is built to keep you moving. Designed for absolute point-of-care efficiency, this highly portable system easily moves from patient to patient. Equip your practice with console-grade performance in a laptop design that knows no boundaries, allowing you to scan faster and diagnose with confidence.

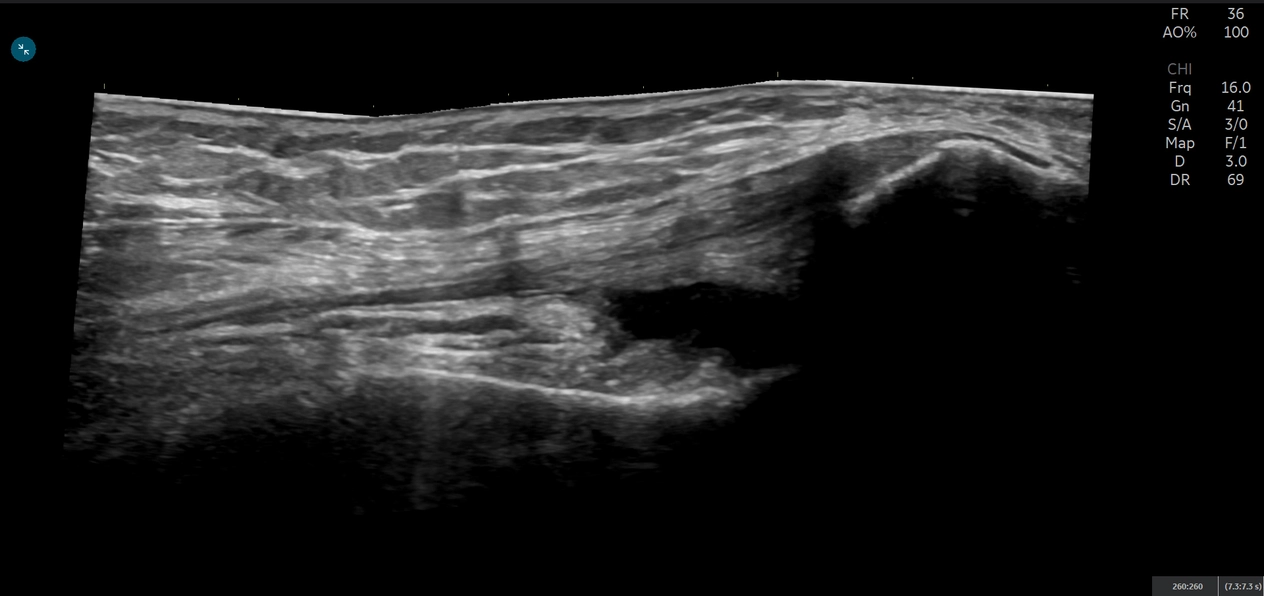

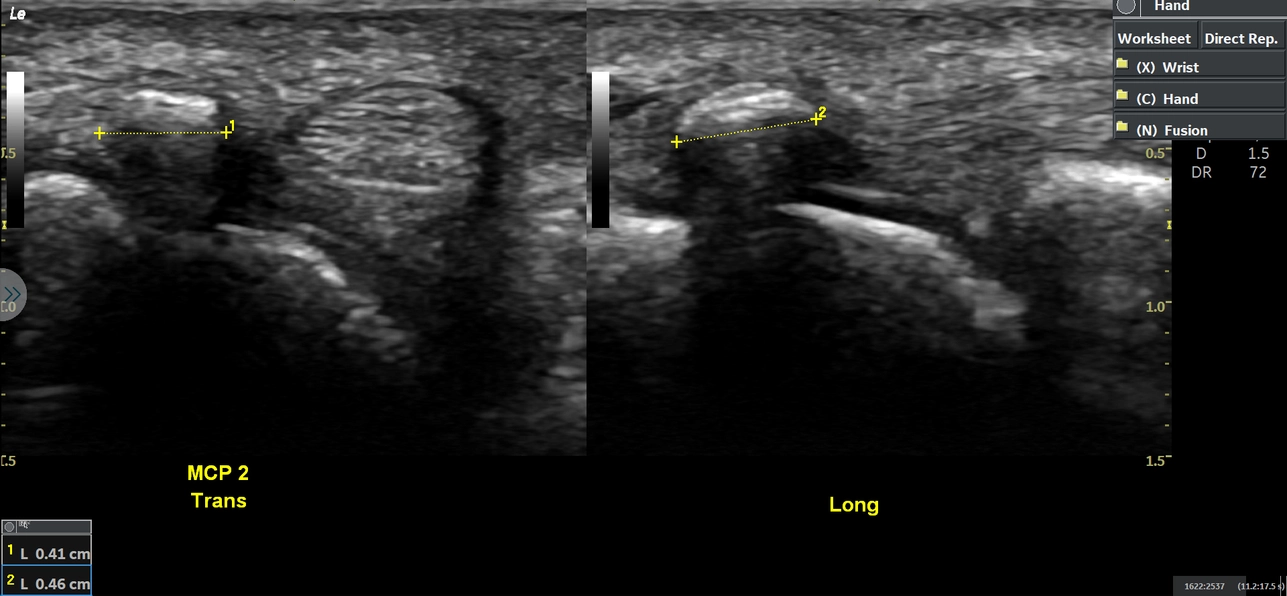

Early diagnosis, objective treatment decisions, and consistent patient monitoring are daily challenges in rheumatology and musculoskeletal care. The refurbished GE NextGen LOGIQ e R9 is equipped to meet these exact needs by offering user-friendly quantification tools. With features like High-Res PDI, practitioners can visualize and quantify low blood flow to detect early inflammation, tumors, and synovitis. This allows you to monitor a patient’s progress objectively as you treat them toward the target of remission.
Consistency is key when evaluating a patient’s response to therapy over time. The LOGIQ e R9 incorporates a Follow-up Tool with image fusion to ensure technical consistency from one exam to the next, preventing varying techniques from clouding your clinical conclusions. Furthermore, the addition of Strain Elastography lets you measure tissue stiffness, providing a crucial qualitative estimate to assist in joint inflammation staging and treatment planning. Whether you are managing an overbooked clinic or making rapid therapeutic decisions, the R9 delivers the clarity and diagnostic confidence you need.
Features a larger 15.6" (39.624 cm) LCD screen with improved resolution for better visibility in various environments.
Save images in MP4 format for easy review on your computer or phone , and utilize secure Encrypted DICOM® 3.0 connectivity.

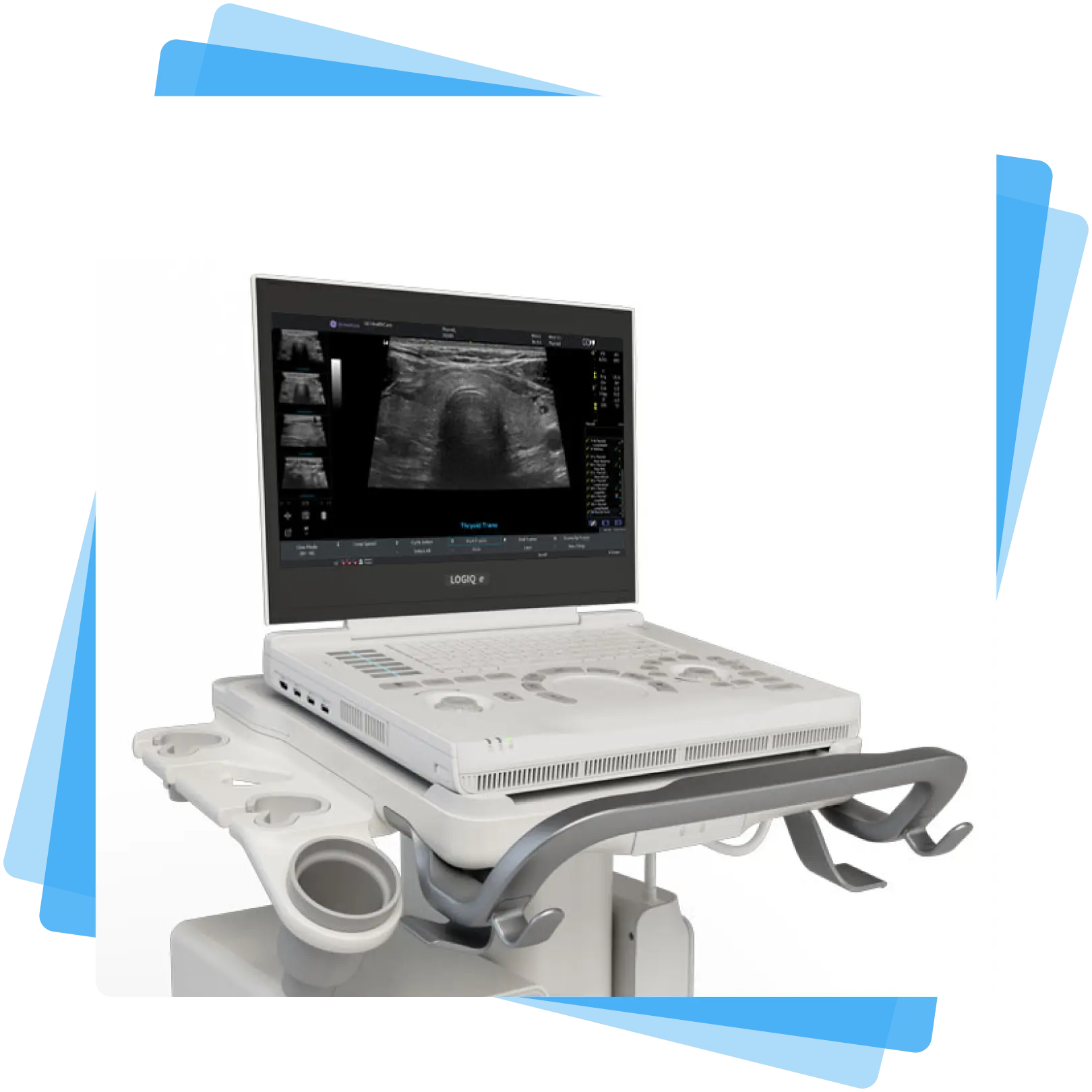

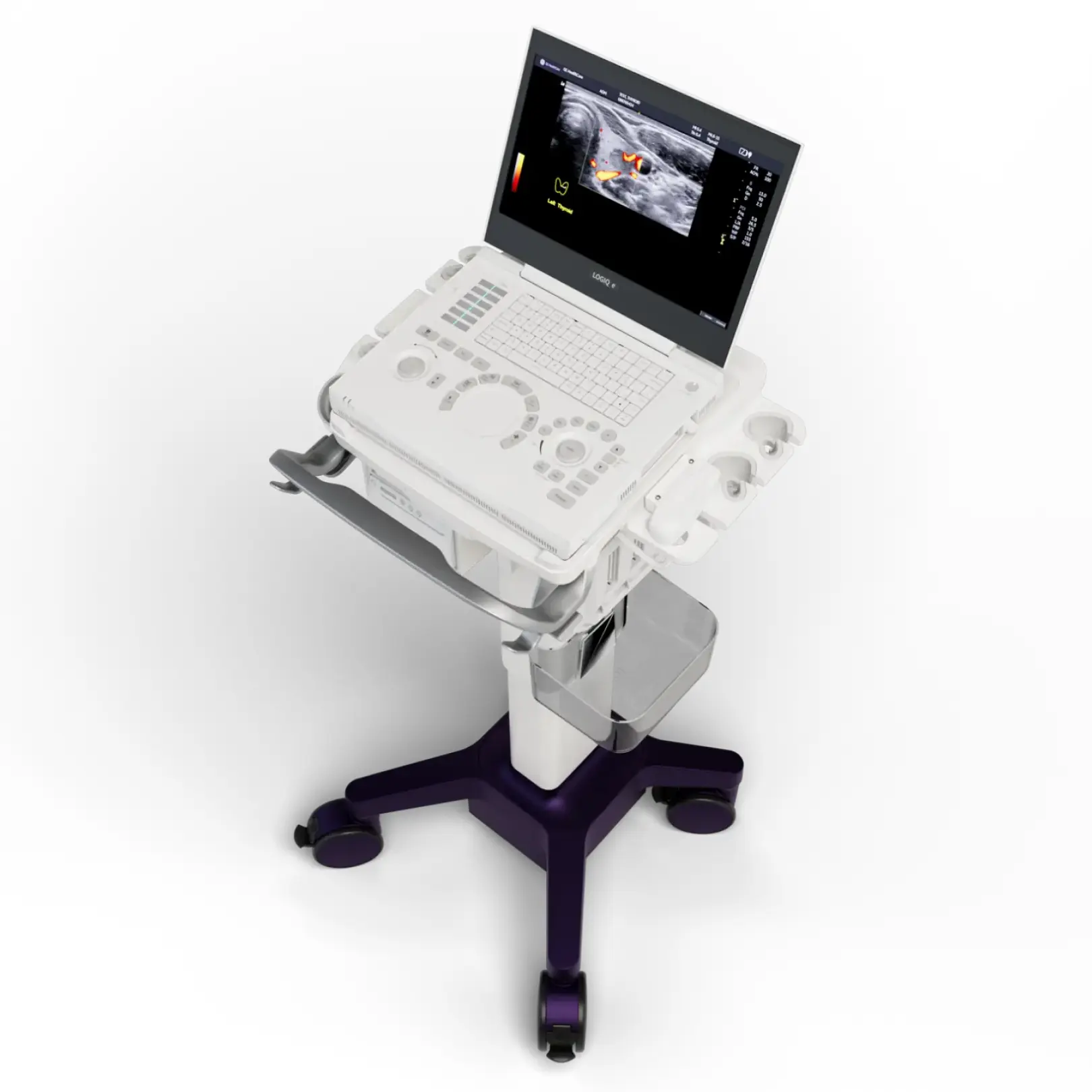

Extremely lightweight at just 4.5 kg (9.92 lbs) off the cart , with a highly maneuverable cart footprint of 20.1" x 20.1"

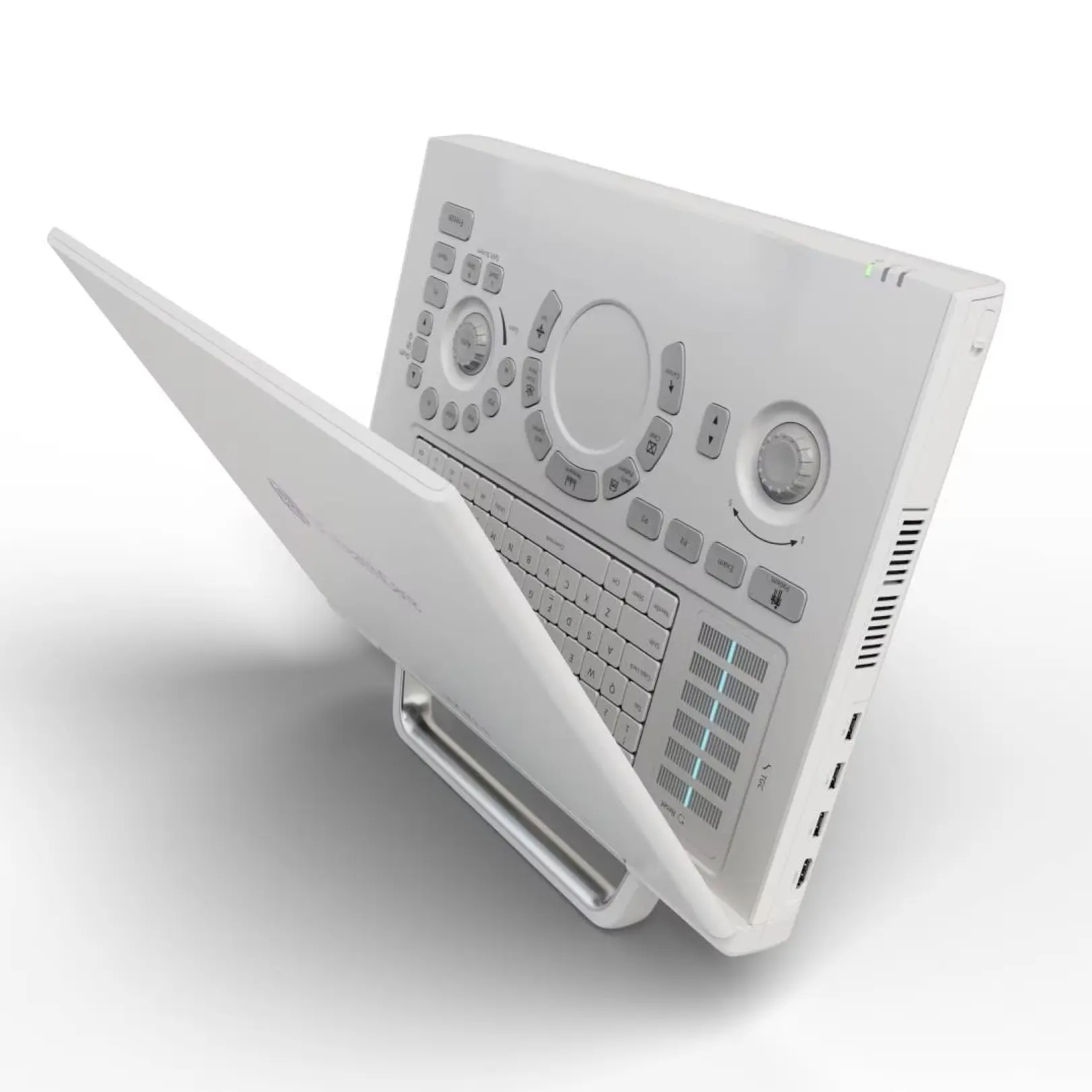

Features a simple, sealed keyboard design with a trackpad option. This enables easier cleaning and simplified functionality during exams.
Portable laptop style unit powered by a modern Microsoft® Windows® 10 operating system , featuring an improved battery life of up to 90 minutes.
Advanced capabilities including High-Res PDI for visualizing flow in neovascularization , Contrast Imaging , and Strain Elastography.
Bandwidth: 1.4 – 5.7 MHz
Footprint: 17.2 x 69.3 mm
Field of View: 59º
Bandwidth: 4 – 10 MHz
Footprint: 13 x 58 mm
Field of View: 128º
Bandwidth: 4 – 11 MHz
Footprint: 16.9 x 21.2 mm
Field of View: 128º
Bandwidth: 1.3 – 4.0 MHz
Footprint: 18 x 24 mm
Field of View: 90°
Bandwidth: 2.5 – 7 MHz
Footprint: 16.8 x 23.5 mm
Field of View: 90°
Bandwidth: 4.1 – 12.0 MHz
Footprint: 13.2 x 17.6 mm
Field of View: 120°
Bandwidth: 3.33 – 10 MHz
Footprint: 14.1 x 53 mm
Field of View: 49.6 mm
Bandwidth: 5 – 13 MHz
Footprint: 42 x 7 mm
Biopsy Guide: Available
Bandwidth: 3.4 – 12.6 MHz
Footprint: 12.7 x 47.1 mm
Biopsy Guide: Multi Angle
Bandwidth: 5.0 – 20.0 MHz
Footprint: 1.6 x 48.4 mm
Biopsy Guide: Multi Angle
Bandwidth: 6.7 – 18.0 MHz
Footprint: 11.1 x 34.8 mm
Field of View: 49.6 mm
Bandwidth: 10.0 – 22.0 MHz
Form Factor: Linear Array
Bandwidth: 2.9 – 8.0 MHz
Depth of field: 20cm
Footprint: L45 x W14 mm
