Premium Point-of-Care Imaging. Unbeatable Value.

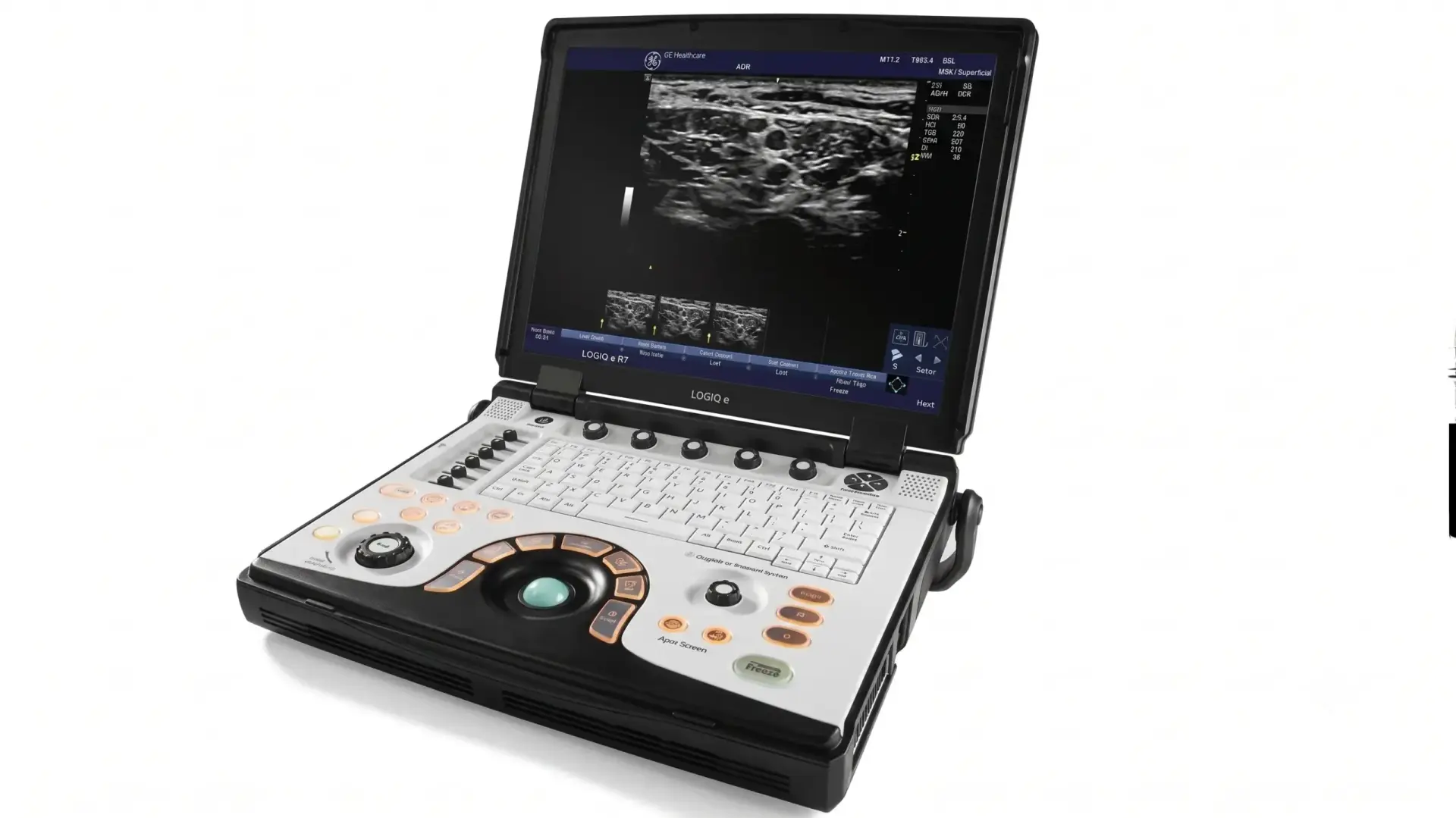

Experience console-level diagnostic confidence in a compact, portable design. The refurbished GE NextGen LOGIQ e R7 remains the industry’s trusted workhorse, delivering advanced technologies like CrossXBeam and SRI-HD without the premium price tag. Whether you are guiding a needle in pain management or performing a fast vascular assessment, the R7 provides the clarity, speed, and reliability your practice demands.

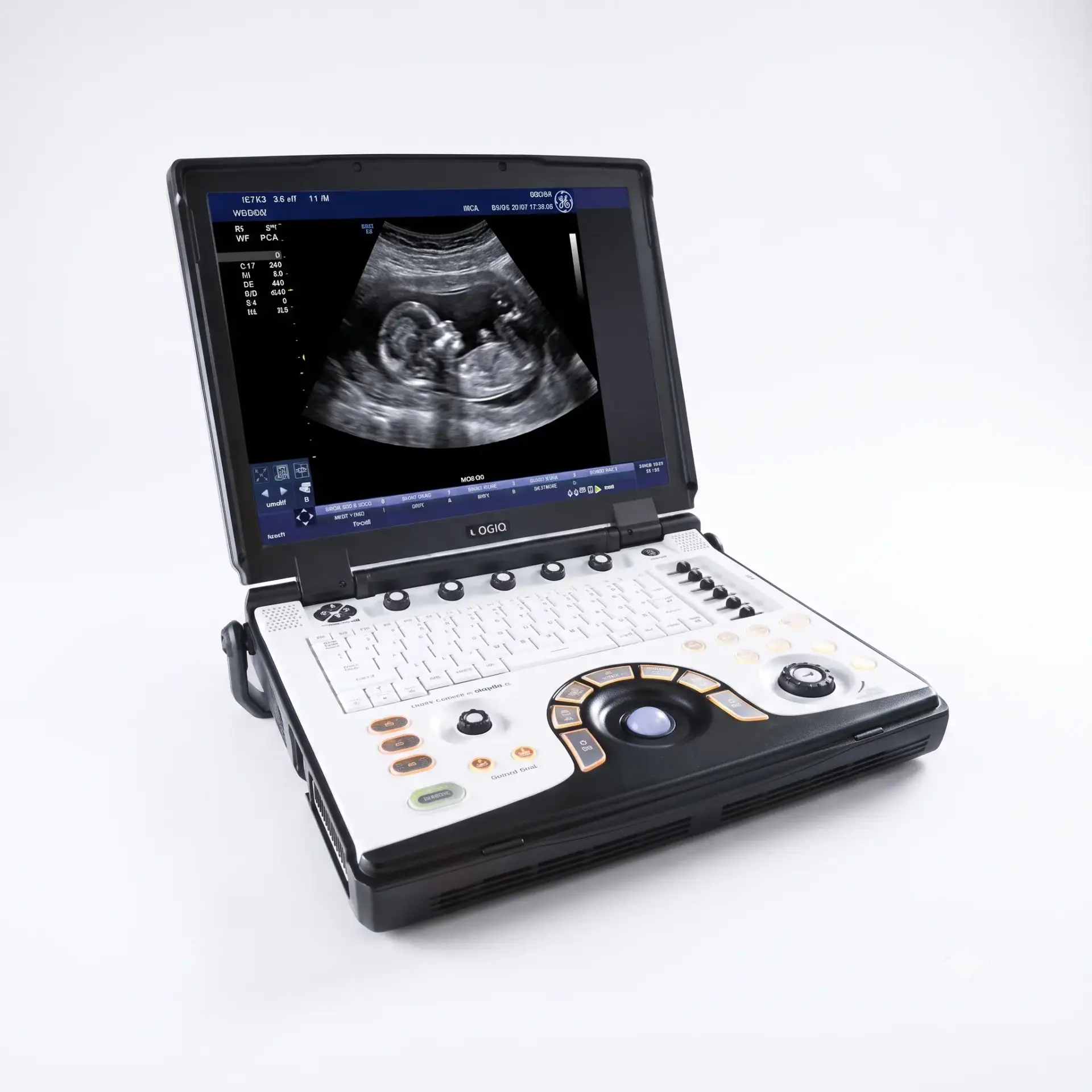

The GE HealthCare NextGen LOGIQ e R7 marks the shift from TruScan to modern high-density processing with a 128-channel beamformer delivering double the processing power of BT-series portables. Verified at 5.2 kg with a 15-inch LCD (1024 x 768) and SSD storage, the R7 boots rapidly and handles MSK, vascular, and point-of-care imaging with resolution that approaches cart-based systems.
The LOGIQ e R7 was engineered to bridge the gap between heavy console systems and basic handhelds. It offers a robust shared-service platform that adapts to fast-paced clinical environments. For practices looking to expand their diagnostic capabilities in MSK, anesthesia, or endocrinology on a budget, a refurbished R7 offers maximum return on investment. With ultra-fast boot times and an intuitive trackball interface, you can focus on the patient, not the machine.
MSK & Rheumatology: Exceptional detail for tendons, muscles, and superficial joints.
Anesthesia & Pain Management: Precise visualization for nerve blocks and joint injections.
Vascular: Sensitive color Doppler for DVT and venous mapping.
General Imaging: Reliable abdominal and small parts scanning.
Specifications
Width
295 mm (11.61 in) console only
Architecture
TruScan (Raw Data Processing for post-exam adjustments)
Length
346 mm (13.62 in) console only
Weight
10.1 lbs (4.6 kg)
Monitor
15-inch high-resolution color LCD (Fold-down laptop style)
Power
Voltage: 100-240 V AC, Frequency: 50/60 Hz, Power: Max. 130 VA
Operator Keyboard
Alphanumeric Keyboard, Ergonomic Hard Keys, Backlight Keys
Storage
120 GB internal hard drive
System Battery
Approximately 1 hour of active scanning on a single charge
Probe Ports
1 active port on the laptop (Expandable to 3 with cart)
Control Panel
Traditional trackball interface with backlit keys
A fast and accurate regional block or joint injection requires seeing the target quickly and guiding the needle with absolute precision. That is exactly what the refurbished GE LOGIQ e R7 portable ultrasound system delivers. With its 15-inch high-resolution display, practitioners can see critical details more clearly, perform procedures efficiently, and be confident that the injection is administered in the exact right location—even in difficult-to-scan or obese patients.
Getting the needle in the right place the first time is key to patient comfort and clinical efficiency. Crisp, console-grade imaging is at the core of the LOGIQ e R7, designed to help you act fast without compromising accuracy.
See the needle tip clearly: The LOGIQ e R7 utilizes advanced Needle Recognition technology. By processing two different types of ultrasound signals (one optimized for tissue and one for metal), it makes the needle stand out brilliantly while allowing separate control of its appearance, preventing anatomy distortion.
See the nerve and tissue: Tissue differentiation matters. The R7 imaging engine is powered by CrossXBeam and SRI-HD (Speckle Reduction Imaging) technology. This drastically reduces artifact noise and enhances borders, making the nerve stand out for confident anesthesia and regional block procedures.
SRI-HD (Speckle Reduction Imaging): Smooths out grainy artifacts and enhances true tissue appearance, making anatomical borders distinct and easy to read.
CrossXBeam: Spatial compounding technology that overlaps multiple scan lines, significantly improving contrast resolution and border differentiation.
B-Steer + Needle Recognition: A crucial tool for regional anesthesia. It highlights the needle tip and shaft in real-time, preventing blind advancements and improving patient safety.
LOGIQ View: Offers panoramic imaging to capture larger anatomical structures (like a full muscle tear) in a single, continuous image.
Auto IMT (Intima-Media Thickness): Automates the measurement of the carotid artery wall, speeding up vascular assessments.
The LOGIQ e system adapts to diverse clinical needs, providing dedicated capabilities for general imaging, anesthesia, musculoskeletal, interventional, emergency medicine, and critical care.
Enjoy console-grade performance in a compact, portable design that weighs just 10.1 lbs (4.6 kg). Move seamlessly between patient rooms with approximately 1 hour of active scanning battery life, ensuring uninterrupted workflow.
PDI quantification provides a numeric representation of the blood flow, which may be associated with inflammation, tumors, and synovitis. This helps bring objectivity to patient evaluation and decision-making.
The intuitive interface and patient follow-up tools help provide sonographers and physicians with standardized exam protocols. This guides them through image acquisition steps, saving excessive keystrokes, reducing fatigue, and maintaining exam consistency.
View scans with absolute clarity on the 15-inch high-resolution LCD display. Leverage advanced features like CrossXBeam and SRI-HD to enhance borders and accurately assist in joint inflammation staging, treatment planning, and monitoring.
Ensure seamless and secure integration into your hospital or clinic’s PACS network with DICOM® 3.0 connectivity. Additionally, benefit from enhanced cybersecurity measures from the Windows® 10 operating platform to keep patient data safe.
Advanced Technologies for Effortless POCUS Imaging
Whether you are managing a high-volume emergency department or a specialized MSK clinic, the refurbished GE NextGen LOGIQ e R7 is built to keep you moving. Designed for absolute point-of-care efficiency, this highly portable system easily moves from patient to patient. Equip your practice with console-grade performance in a laptop design that knows no boundaries, allowing you to scan faster and diagnose with confidence.
Don’t let the 10-pound laptop design fool you. The R7 is powered by GE’s TruScan Architecture, giving you access to high-end software features that ensure every scan is diagnostic-quality.
The LOGIQ e R7 is designed to scale with your practice. While it works perfectly as a stand-alone laptop system, you can build a complete workstation with optional accessories tailored to your needs.

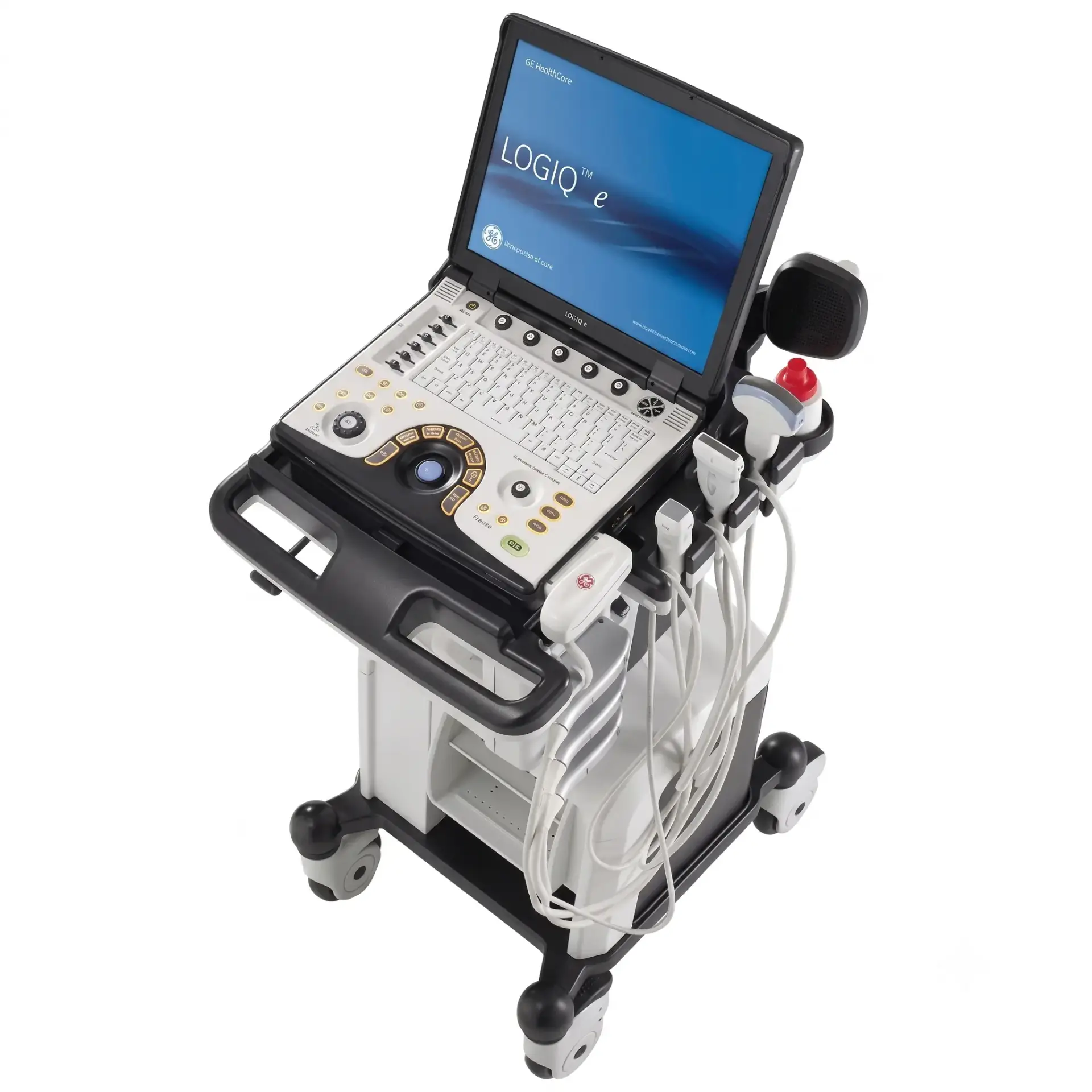

Mobile Docking Cart: Transforms the portable unit into a cart-based system, adding 3 active probe ports so you don’t have to constantly swap transducers manually.
Carrying Case: A durable, custom-fit travel bag for mobile clinics and off-site imaging.
Connectivity: DICOM 3.0 compliant with USB export and optional Wireless LAN for seamless PACS integration.
Peripherals: Supports thermal printers and programmable footswitches to keep your hands sterile during procedures.

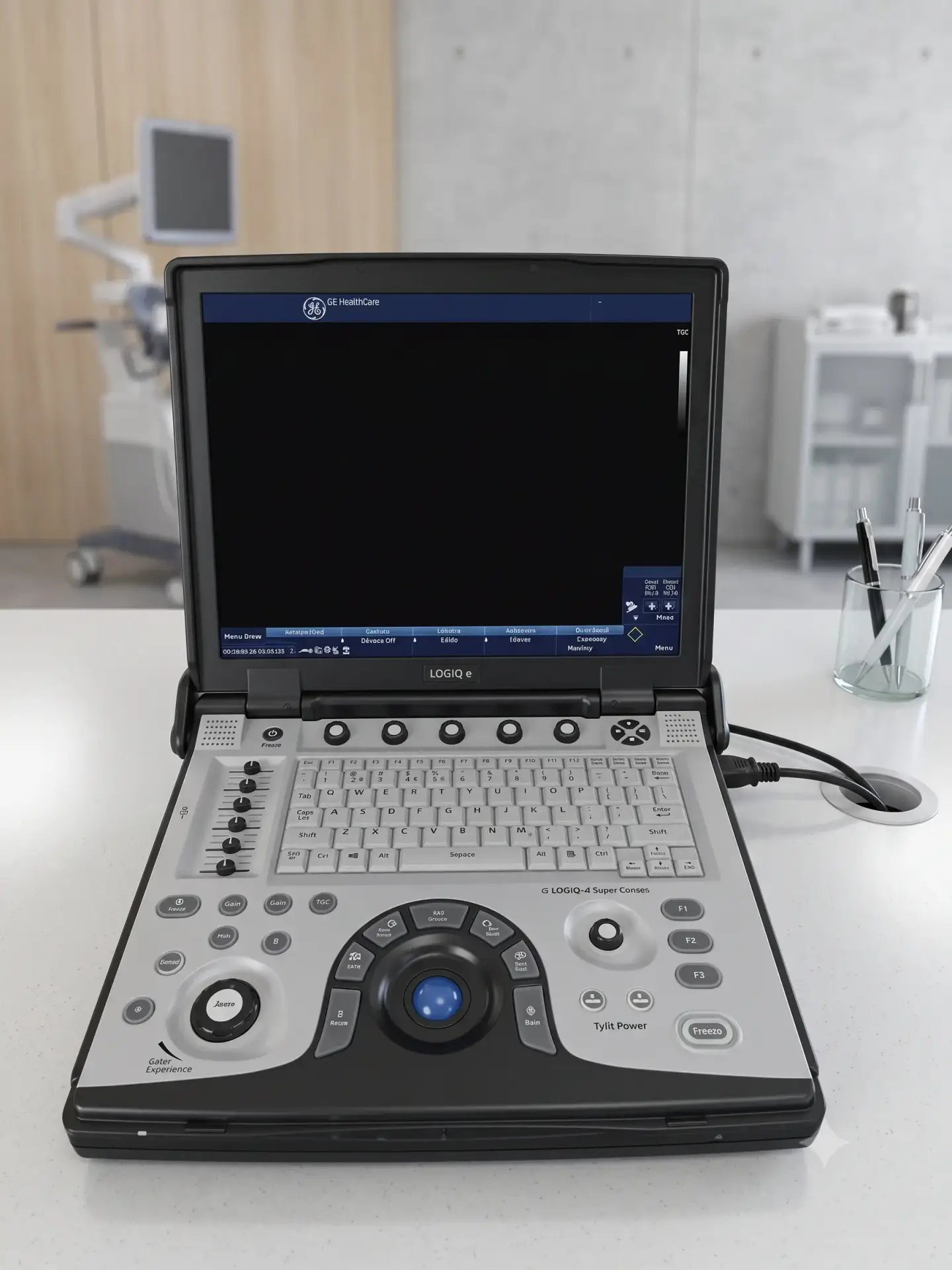

Features a high-resolution 15-inch color LCD screen that provides excellent visibility and diagnostic confidence across various clinical environments.
Save and review patient data reliably with a 120 GB internal hard drive and USB export options, alongside standard DICOM® 3.0 connectivity for seamless PACS integration.
Highly portable and robust, weighing just 10.1 lbs (4.6 kg) as a standalone unit. It easily mounts to an optional mobile docking cart for expanded functionality.

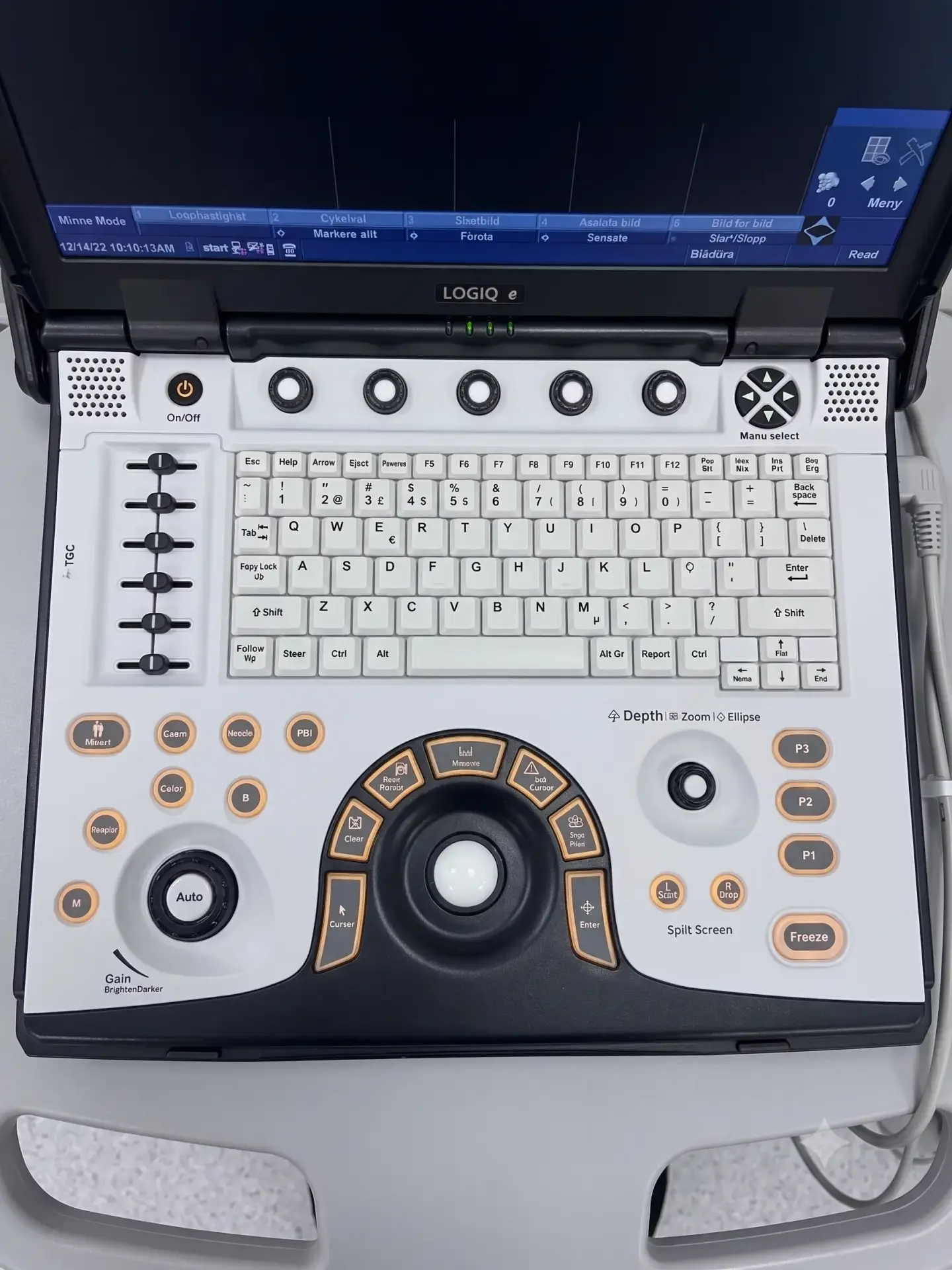

Features a traditional trackball interface and a backlit keyboard layout, offering familiar and intuitive tactile controls designed for fast-paced workflow during exams.
A compact, laptop-style unit powered by GE’s TruScan Architecture and the Windows® 10 operating platform for enhanced cybersecurity. Features a battery life of approximately 1 hour of active scanning.
Advanced capabilities include CrossXBeam, SRI-HD (Speckle Reduction Imaging), and High-Res PDI to visualize flow in neovascularization, ensuring exceptional tissue differentiation.
Bandwidth: 1.4 – 5.7 MHz
Footprint: 17.2 x 69.3 mm
Field of View: 59º
Bandwidth: 4 – 10 MHz
Footprint: 13 x 58 mm
Field of View: 128º
Bandwidth: 4 – 11 MHz
Footprint: 16.9 x 21.2 mm
Field of View: 128º
Bandwidth: 1.3 – 4.0 MHz
Footprint: 18 x 24 mm
Field of View: 90°
Bandwidth: 2.5 – 7 MHz
Footprint: 16.8 x 23.5 mm
Field of View: 90°
Bandwidth: 4.1 – 12.0 MHz
Footprint: 13.2 x 17.6 mm
Field of View: 120°
Bandwidth: 3.33 – 10 MHz
Footprint: 14.1 x 53 mm
Field of View: 49.6 mm
Bandwidth: 5 – 13 MHz
Footprint: 42 x 7 mm
Biopsy Guide: Available
Bandwidth: 3.4 – 12.6 MHz
Footprint: 12.7 x 47.1 mm
Biopsy Guide: Multi Angle
Bandwidth: 5.0 – 20.0 MHz
Footprint: 1.6 x 48.4 mm
Biopsy Guide: Multi Angle
Bandwidth: 6.7 – 18.0 MHz
Footprint: 11.1 x 34.8 mm
Field of View: 49.6 mm
Bandwidth: 10.0 – 22.0 MHz
Form Factor: Linear Array
Footprint: Not Available
Bandwidth: 2.9 – 8.0 MHz
Depth of field: 20cm
Footprint: L45 x W14 mm
Find quick answers to the most common questions about our services, process, and policies.
The R7 is an earlier generation that uses a traditional trackball interface and a 15-inch monitor, making it a highly cost-effective choice. The newer R8 and R9 models feature larger 15.6-inch screens, sealed trackpads for easier cleaning, and faster processing, but they come at a higher price point.
Yes, it is excellent for guided injections. It features B-Steer and Needle Recognition technology, which enhances the visibility of the needle without distorting the surrounding tissue, making it a favorite among pain management and MSK specialists.
Absolutely. The system is DICOM 3.0 compliant, allowing you to easily transfer images and patient data to your clinic's PACS network via an ethernet cable or optional Wi-Fi.
Yes, the GE LOGIQ e R7 is compatible with a specialized mobile docking cart. The cart not only provides a stable workstation but also adds three active probe ports, allowing you to switch between transducers seamlessly.
